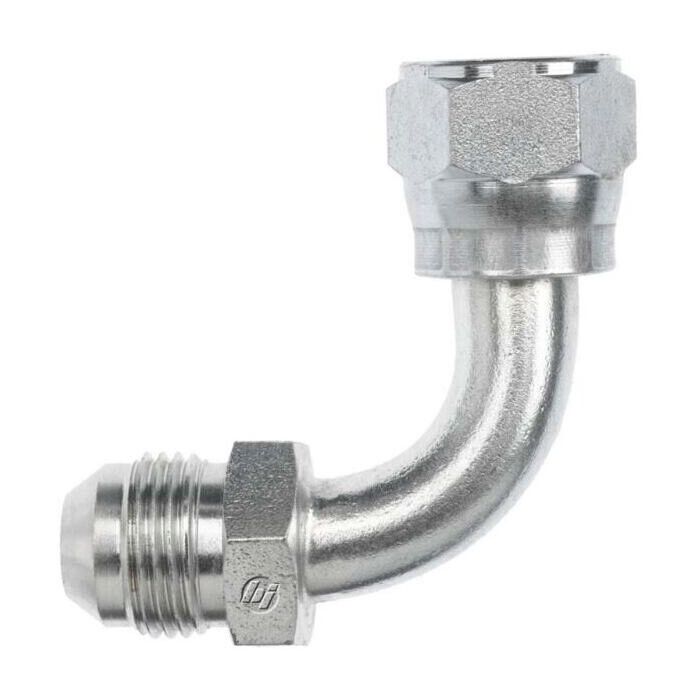

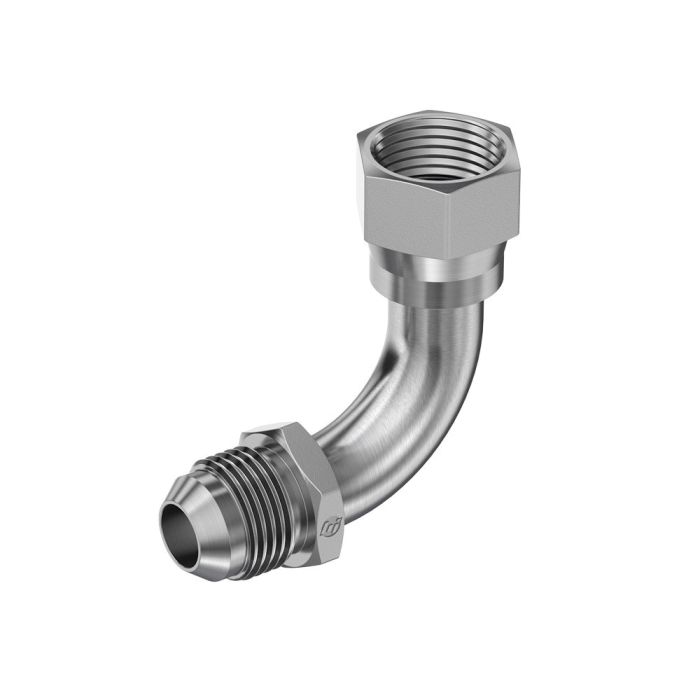

main product photo

Adapter

Ask A Question

Description & Features

This steel adapter features a 90-degree swept bent tube elbow, designed for hydraulic applications. It has a centerline length of 1.94 mm and an overall length of 1.80 mm.

The adapter is constructed from straight steel and includes two 7/8-14 threaded ports conforming to SAE J514 specifications. One port is a male JIC SAE 37-degree flare, and the other is a female JIC swivel 37-degree flare.

SKU: 6701-10-10

Supplier Part Number (MPN): 6701-10-10

Alternate Part Numbers: A500454-10S, NB6701-10-10

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 15/16 in
l Dimensions
1.8 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
5000 psi
Series
6701 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Todd F on Jul 15, 2025, 10:18 AM
Both my lines are 7/8-14 JIC, one's a male end and the other's a swivel female. This the right fitting to connect em up at a 90?
Answer by: Customer Support on Jul 16, 2025, 11:27 AM
Yeah, that's exactly what this one's built for. One end is a male JIC 37-degree flare and the other is a female JIC swivel, both sized at 7/8-14 and both meet SAE J514. The swivel end helps a lot during installation since you can rotate it to get the angle right without twisting the line itself. The 90-degree swept elbow gives you that direction change without having to force a hard bend in your tubing.
Question by: Janice J on Jun 24, 2025, 4:08 PM
What kind of material is this made out of, exactly?
Answer by: Customer Support on Jun 26, 2025, 6:17 AM
It's made from straight steel, so it's durable for hydraulic applications.
