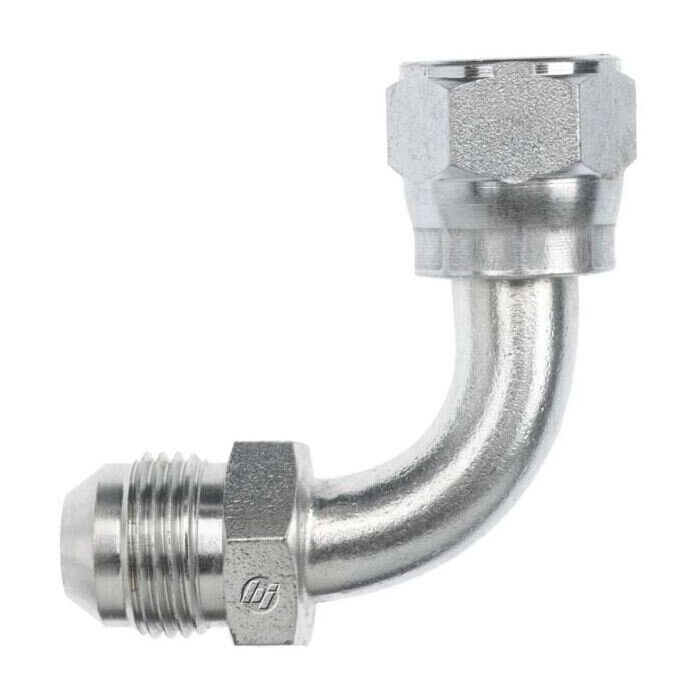

20MJ-20FJS SWEPT 90 DEG ELB

A swept 90-degree elbow designed for hydraulic tube and hose assemblies, the 20MJ-20FJS Swept 90 Deg Elbow connects male JIC SAE 37-degree flare to female JIC swivel 37-degree flare, both in 1-5/8-12 thread size conforming to SAE J514. The swivel end allows rotational adjustment during installation, simplifying alignment in tight or fixed-position configurations.

Constructed from straight steel, this fitting belongs to Brennan's Series 6701. With an overall length of 3.750 inches and a centerline length of 3.260 inches, the swept elbow geometry provides a gradual directional change compared to a standard 90-degree elbow, supporting smoother flow transition in high-pressure hydraulic circuits. Hex size across the fitting measures 2.000 inches. California residents should note that this product carries a Prop 65 warning.

SKU: 6701-20-20

Supplier Part Number (MPN): 6701-20-20

Alternate Part Numbers: A500454-20S, NB6701-20-20
