45* Din X Male Metric Adj

Description & Features

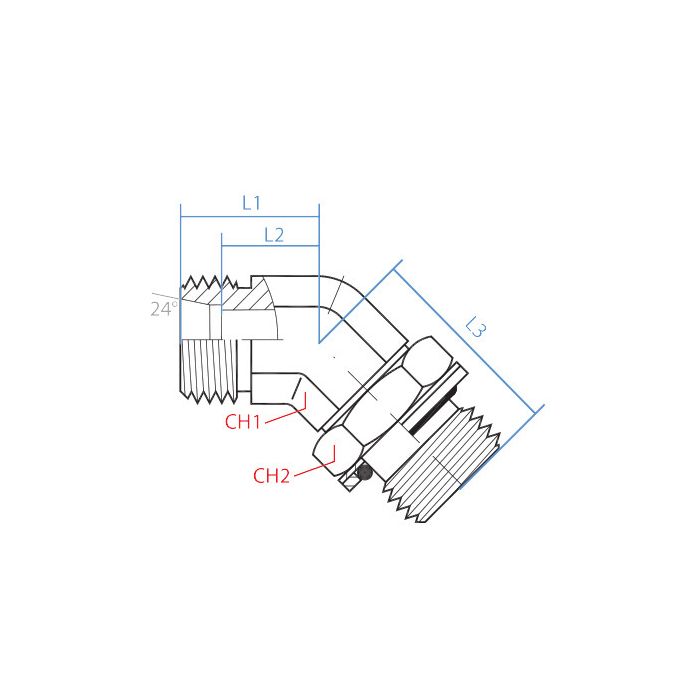

Enhance the efficiency of your hydraulic systems with this versatile 45° elbow adapter. Constructed from durable steel, it ensures reliable performance in demanding industrial environments. The adapter features a male DIN tube fitting on one end with an M14 x 1.5 thread and a male metric fitting on the other end with an M12 x 1.5 thread, making it suitable for a range of metric hydraulic applications. Its compact design, with dimensions including a Ch1 width of 12mm and Ch2 width of 17mm, allows for easy installation in tight spaces.

The adapter's precise engineering is evident in its dimensions: L1 length of 18mm, L2 length of 11mm, and L3 length of 27mm. The product is part of the Adaptall brand, known for its high-quality hydraulic components. Whether you're integrating it into existing systems or planning a new setup, this adapter provides a reliable connection solution.

SKU: 5066S-06-12

Supplier Part Number (MPN): 5066S-06-12

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 18mm	L2 Length 11mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-06-12	Product Weight 0.11 lbs

Product Questions & Answers (1)

Question by: Rusty A on May 1, 2025, 8:04 AM

got a line running M12 x 1.5 metric on one end and need to tie into a DIN tube fitting that's M14 x 1.5, this the right piece for that?

Answer by: Customer Support on May 3, 2025, 8:31 AM

Yeah, that's exactly what this adapter is built for. One end is a male DIN tube fitting with an M14 x 1.5 thread, and the other side is a male metric at M12 x 1.5. If those are your two thread specs, this connects them at a 45 degree angle, which also helps with routing in tighter hydraulic connections layouts.
