04MJICX02MORB 90

Description & Features

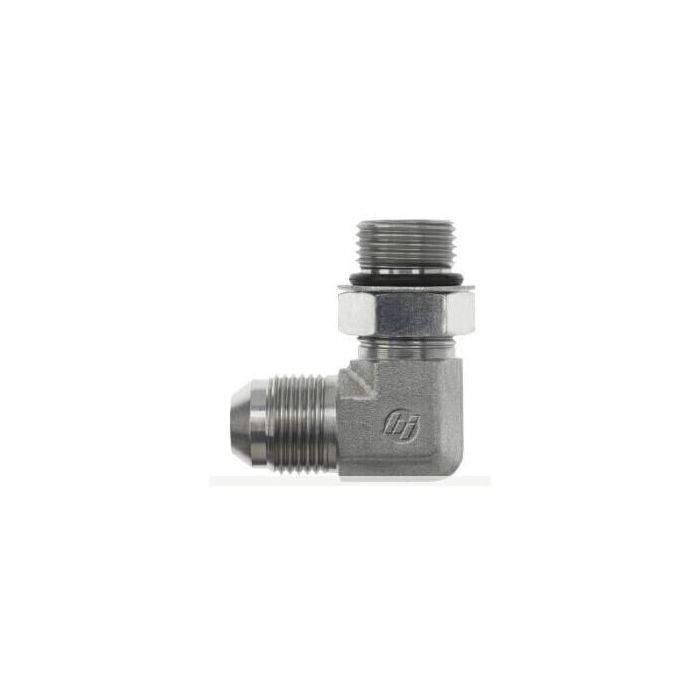

This 90-degree forged elbow features a 7/16-20 male JIC 37-degree flare (SAE J514) connection on one end and a 5/16-24 male SAE adjustable O-ring boss (SAE J514) on the other. The 04MJICX02MORB 90 is manufactured from steel forging and uses an NBR O-ring seal. It has a maximum dynamic pressure of 5,000 PSI and a centerline length of 0.890 inches.

SKU: 6801-04-02-NWO-FG

Supplier Part Number (MPN): 6801-04-02-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-04-02-NWO-FG	Product Weight 0.06 lbs

Product Questions & Answers (1)

Question by: Lee W on Jun 10, 2025, 6:28 PM

How long is the centerline on this elbow?

Answer by: Customer Support on Jun 12, 2025, 6:31 AM

The centerline length on this 90-degree elbow is 0.890 inches.
