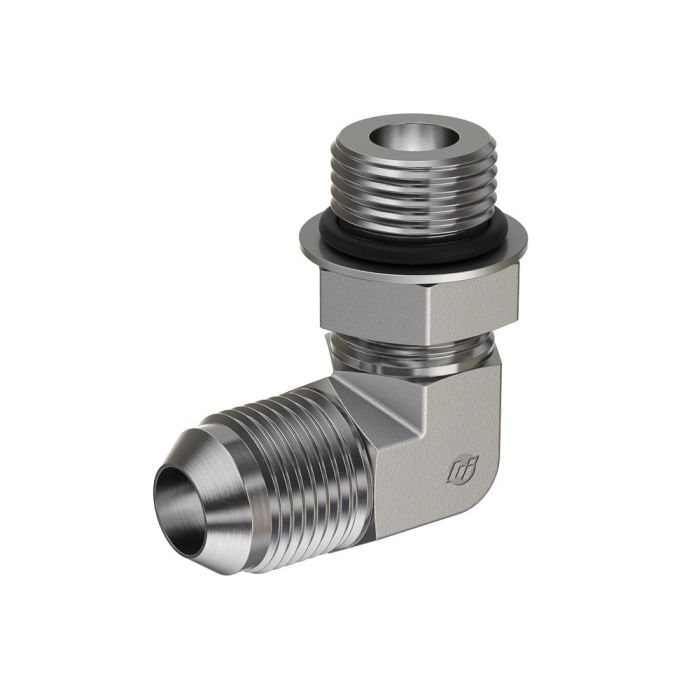

main product photo

04MJIC X #3 MORB 90

Ask A Question

Description & Features

The 04MJIC X #3 MORB 90 adapter from Brennan Industries Inc is engineered to meet the industry's rigorous requirements. Designed for compatibility and reliability it ensures a secure connection within hydraulic systems.

This high-quality adapter features a 90-degree bend facilitating optimal fitment in tight spaces. Its robust construction guarantees long-lasting performance even under demanding conditions.

With its precise threads it provides a leak-free solution contributing to system efficiency. This product is suitable for various industrial applications where durability and precision are paramount.

MPN: 6801-04-03-NWO

Supplier Part Number: 6801-04-03-NWO-FG

Specifications

Brand
Brennan Industries
Connection Size 1
1/4 in
Connection Size 2
3/16 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1926, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1/2 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
6801-NWO-FG Series
Thread Size
7/16-20 x 3/8-24

Product Questions & Answers (2)

Question by: Cindy W on May 26, 2025, 1:24 PM
trying to hook up a line in a tight spot. is this the 90 degree adapter that goes from a #4 MJIC to a #3 MORB?
Answer by: Customer Support on May 27, 2025, 1:46 PM
For tight clearances, the 04MJIC X #3 MORB 90 is a 90 degree hydraulic adapter that connects a #4 MJIC end to a #3 MORB end, giving you a right-angle turn while keeping the connection secure.
Question by: Lee R on Oct 26, 2025, 2:19 PM
Will this fitting work with a standard JIC flare? I wanna make sure it seats right before I order.
Answer by: Customer Support on Oct 28, 2025, 8:52 AM
It's made to connect to #4 MJIC fittings on one side and #3 MORB fittings on the other, the 90-degree angle should help with tight spots. You should get a secure, leak-free seal when used correctly.
