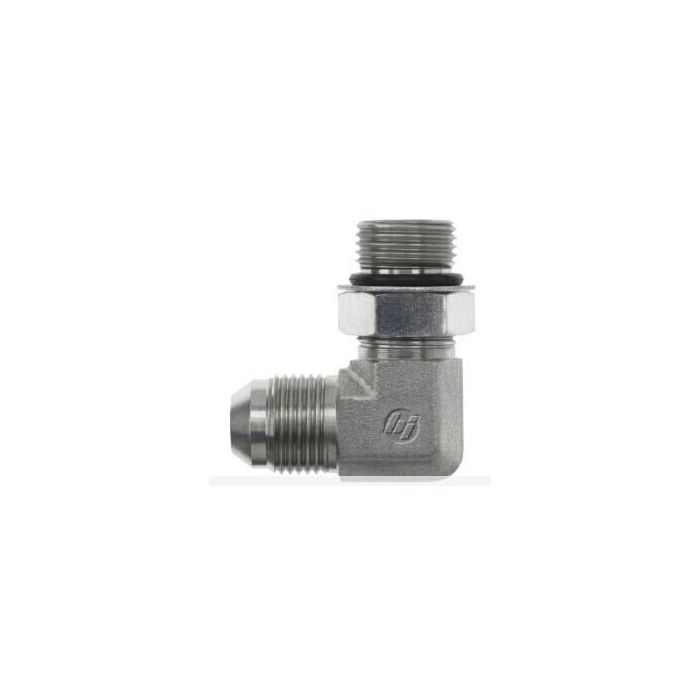

main product photo

04MJ-04MAORB 90 DEG Elbow

Ask A Question

Description & Features

The 04MJ-04MAORB 90 DEG Elbow from Brennan Industries Inc is designed for high-efficiency industrial applications. Crafted from steel forging this component ensures durability and optimal performance under demanding conditions.

This elbow fitting features a male JIC SAE 37-degree flare and a male SAE adjustable O-ring boss both compliant with SAE J514 specifications. It incorporates NBR O-rings for reliable sealing and a hex size of 0.563 inches making it easy to install and maintain.

Its compact design occupies a cubic inch space of 0.824 integrating seamlessly into various setups without compromising on functionality.

Supplier Part Number: 6801-04-04-NWO-FG

MPN: 6801-04-04-NWO-FG

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Cubic Inch Space L x W x H Dimensions
0.824 cu-in
Dimension Standards
SAE J1926, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-NWO-FG Series
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Roy J on Jul 26, 2025, 11:05 AM
both threads on this thing are 7/16-20, does that mean it's the same size on both ends even though one's JIC and one's O-ring boss?
Answer by: Customer Support on Jul 27, 2025, 3:09 PM
Correct on the sizing. Both ports are 7/16-20, but the thread types are different by design. One end is a male JIC SAE 37-degree flare, and the other is a male SAE adjustable O-ring boss. Same thread pitch and diameter, different sealing methods. The JIC end seals on the flare angle, while the O-ring boss end uses the NBR O-ring that comes with the fitting. That combination is exactly the point of this elbow, letting you transition between those two connection styles at a 90-degree angle without needing an adapter stack.
Question by: Tony W on Oct 19, 2025, 10:09 AM
i’ve got a hose end that’s 7/16-20 JIC, will this elbow mate up right or am i mixing standards
Answer by: Customer Support on Oct 20, 2025, 10:10 AM
Thread B1 on this fitting is a male JIC SAE 37 degree flare in 7/16-20, built to SAE J514. If your hose end is a matching 7/16-20 JIC female flare, that side is the correct style and thread size to pair up.
Question by: Ross G on Nov 21, 2025, 12:21 PM
Is this elbow made of steel or somethin else?
Answer by: Customer Support on Nov 23, 2025, 7:43 AM
It is indeed made from steel forging, so it should hold up well in industrial settings.
