#4MJIC X #6 MORB 90*

Description & Features

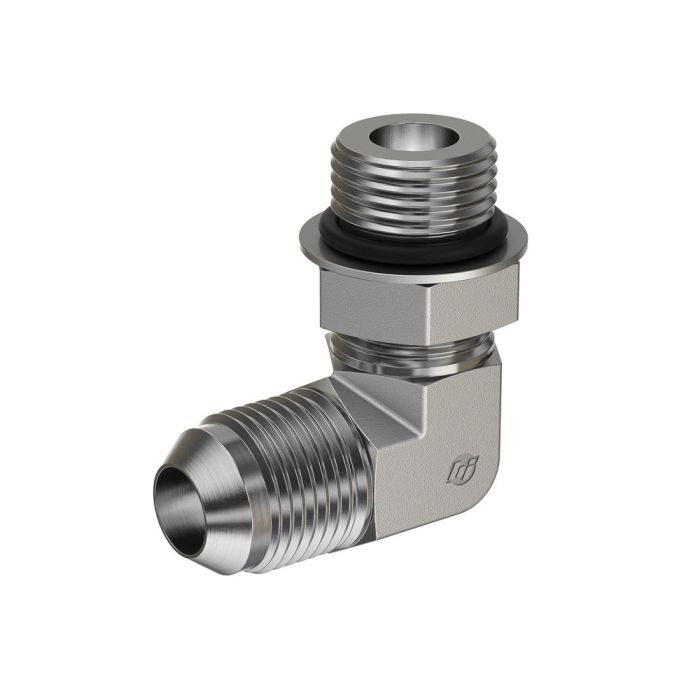

The 04MJ-06MAORB 90Deg Elbow Forged by Brennan Industries Inc is engineered from durable steel forging ensuring robust reliability for demanding applications. Featuring a maximum dynamic pressure of 6 000 psi it is suitable for high-pressure environments.

It incorporates a #4MJIC x #6MORB configuration a 90-degree elbow design and is equipped with NBR O-ring seals to enhance performance integrity. The precise thread specifications follow SAE J514 standards with a 7/16-20 Male JIC SAE 37 Degree Flare on one end and a 9/16-18 Male SAE Adjustable Oring Boss on the other providing secure and adaptable connections.

Dimensions include a centerline length of 1.050 mm and an overall length of 1.250 mm offering compactness and efficiency. The C hex size is 0.688 mm ensuring ease of installation and maintenance.

The product is part of the 6801-NWO-FG series crafted to meet rigorous industry standards and suitable for specialized applications in various sectors.

MPN: 6801-04-06-NWO-FG

Supplier Part Number: 6801-04-06-NWO-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Cubic Inch Space L x W x H Dimensions
1.468 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.25 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
l Dimensions
1.25 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
9/16-18, 7/16-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Dimensions Price Action
02MJ-02MAORB 90 DEG Elbow

6801-02-02-NWO-FG

1/8 in

1/8 in

5/16-24

0.94 in L

#3MJIC X #3 MORB 90*

6801-03-03-NWO-FG

3/16 in

3/16 in

3/8-24

0.94 in L

04MJICX02MORB 90

6801-04-02-NWO-FG

1/4 in

1/8 in

7/16-20 x 5/16-24

0.92 in L

04MJ-04MAORB 90 DEG Elbow

6801-04-04-NWO-FG

1/4 in

1/4 in

7/16-20

#4 MJIC X #5 MORB 90*

6801-04-05-NWO-FG

1/4 in

5/16 in

1/2-20 x 7/16-20

1.13 in L

6801-04-08-NWO-FG

6801-04-08-NWO-FG

1/4 in

1/2 in

3/4-16 x 7/16-20

#5 MJIC X #4 MORB 90*

6801-05-04-NWO-FG Steel Male ORB To JIC 90 Elbow

5/16 in

1/4 in

1/2-20 x 7/16-20

1.13 in L

05MJ-05MAORB 90 DEG ELBOW

6801-05-05-NWO-FG

5/16 in

5/16 in

1/2-20

1.13 in L

6801-05-06-NWO-FG

6801-05-06-NWO-FG

5/16 in

3/8 in

9/16-18 x 1/2-20

#5 MJIC X #8 MORB 90*

6801-05-08-NWO-FG

5/16 in

1/2 in

1/2-20 x 3/4-16

1.45 in L

#5 MJIC X #10 MORB 90*

6801-05-10-NWO-FG

5/16 in

5/8 in

7/8-20 x 1/2-14

1.7 in L

06MJ-04MAORB 90 ELB

6801-06-04-NWO-FG

3/8 in

1/4 in

9/16-18, 7/16-20

1.19 in L

06MJ-05MAORB 90 DEG Elbow

6801-06-05-NWO-FG

3/8 in

5/16 in

9/16-18 x 1/2-20

1.19 in L

06MJ-06MAORB 90 DEG Elbow

6801-06-06-NWO-FG

3/8 in

3/8 in

9/16-18

1.25 in L

06MJ-08MAORB 90 DEG ELBOW

6801-06-08

3/8 in

1/2 in

3/4-16, 9/16-18

1.45 in L

06 MJIC X 10 MORB 90

6801-06-10-NWO-FG

3/8 in

5/8 in

7/8-14 x 9/16-18

08MJ-08MAORB 90 ELB

6801-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

1.45 in L

08MJ-12MAORB 90 ELBOW FORGE

6801-08-12-NWO-FG

1/2 in

3/4 in

3/4-16 x 1-1/16-12

1.94 in L

#8 MJIC X #16 MORB 902*

6801-08-16-NWO-FG

1/2 in

1 in

1-5/16-12, 3/4-16

2.05 in L

#10 MJIC X #6 MORB 90*

6801-10-06-NWO-FG

5/8 in

3/8 in

7/8-14 x 9/16-18

1.41 in L

10MJ-08MAORB 90 DEG ELBOW FORGED

6801-10-08-NWO-FG

5/8 in

1/2 in

7/8-14 x 3/4-16

1.54 in L

10MJ-10MAORB 90 ELB

6801-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

1.7 in L

10MJ-12MAORB 90 ELB

6801-10-12-NWO-FG

5/8 in

3/4 in

7/8-14 x 1-1/16-12

1.94 in L

10MJ-16MAORB 90 ELB

6801-10-16-NWO-FG

5/8 in

1 in

7/8-14 x 1-5/16-12

2.05 in L

6801-12-08-NWO-FG

6801-12-08-NWO-FG

3/4 in

1/2 in

3/4-16 x 1-1/16-12

12MJ-10MAORB 90 ELB

6801-12-10-NWO-FG

3/4 in

5/8 in

7/8-14 x 1-1/16-12

1.78 in L

ADAPTER

6801-12-14-NWO

3/4 in

7/8 in

1-3/16-12 x 1-1/16-12

12MJ-16MAORB 90 ELB

6801-12-16-NWO-FG

3/4 in

1 in

1-5/16-12 x 1-1/16-12

2.05 in L

#14 MJIC X #12 MORB 90*

6801-14-12-NWO-FG

7/8 in

3/4 in

1-3/16-12 x 1-1/16-12

2 in L

#16 MJIC X #10 MORB 90*

6801-16-10-NWO-FG

1 in

5/8 in

7/8-14 x 1-5/16-12

1.89 in L

FITTING - HYDRAULIC - 16 C5OX

6801-16-16-NWO-FG

1 in

1 in

1-5/16-12

2.05 in L

90 DEG MALE JIC 1IN X MALE ORB 1-1/4IN

6801-16-20-NWO-FG

1 in

1-1/4 in

1-5/8-12 x 1-5/16-12

2.25 in L

#16 MJIC X #24 MORB 90

6801-16-24-NWO-FG

1 in

1-1/2 in

1-7/8-12 x 1-5/16-12

2.39 in L

#20 MJIC X #14 MORB 90*

6801-20-14-NWO-FG

1-1/4 in

7/8 in

1-3/16-12 x 1-5/8-12

2.25 in L

20MJ-16MAORB 90 ELB

6801-20-16-NWO-FG

1-1/4 in

1 in

1-5/8-12 x 1-5/16-12

2.25 in L

20MJ-20MAORB 90 ELB

6801-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

2.25 in L

6801-20-24-NWO-FG

6801-20-24-NWO-FG

1-1/4 in

1-1/2 in

1-7/8-12, 1-5/8-12

6801-24-20-NWO-FG

6801-24-20-NWO-FG

1-1/2 in

1-1/4 in

1-7/8-12, 1-5/8-12

6801-24-24-NWO-FG

6801-24-24-NWO-FG

1-1/2 in

1-1/2 in

1-7/8-12

24MJ-32MAORB 90 DEG ELBOW

6801-24-32-NWO-FG

1-1/2 in

2 in

2-1/2-12 x 1-7/8-12

2.89 in L

#32 MJ X #32 MORB 90*

6801-32-32

2 in

2 in

2-1/2-12

Product Questions & Answers (3)

Question by: Janet L on Jan 17, 2026, 11:44 AM
Got a #6 ORB port on a valve block and need to make a 90-degree turn to a #4 JIC line, this fitting do the trick?
Answer by: Customer Support on Jan 18, 2026, 2:18 PM
That's exactly what this elbow is built for. One end is a 7/16-20 Male JIC with a 37-degree flare, and the other is a 9/16-18 Male SAE Adjustable O-ring Boss. So yeah, a #4 JIC line to a #6 ORB port at a 90-degree angle is precisely the connection this fitting makes. It's forged steel and rated to 6,000 psi dynamic pressure, so it'll hold up in a working hydraulic system without any fuss.
Question by: Tony W on Mar 16, 2026, 6:09 AM
Reckon this fitting would work for hooking up a gauge to a hydraulic pump?
Answer by: Customer Support on Mar 18, 2026, 6:40 AM
The 6,000 psi maximum dynamic pressure makes this elbow suitable for high-pressure environments like those found in hydraulic systems. Just be sure the gauge and pump connections match the #4MJIC and #6MORB sizes.
Question by: Rusty H on Oct 7, 2025, 3:21 PM
trying to swap out an elbow on a skid, is this one the #4 male JIC to #6 male ORB in a 90?
Answer by: Customer Support on Oct 9, 2025, 6:06 AM
It is a 90 degree elbow with a 7/16-20 male JIC SAE 37 degree flare on one end and a 9/16-18 male SAE adjustable O-ring boss on the other. That matches a #4 MJIC x #6 MORB configuration.
