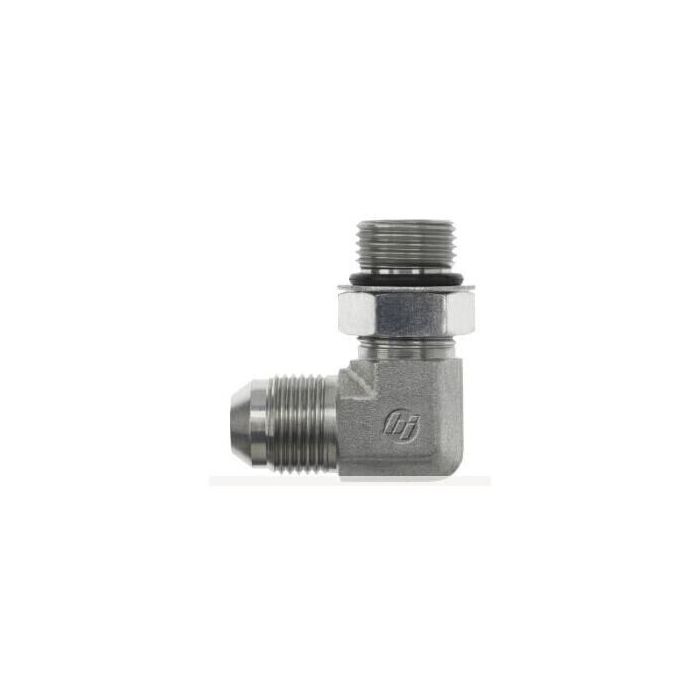

#5 MJIC X #10 MORB 90*

Forged from steel, this 90-degree elbow fitting connects a #5 Male JIC SAE 37-degree flare (1/2-20 thread, per SAE J514) to a #10 Male SAE Adjustable O-Ring Boss (7/8-14 thread, per SAE J514), making it well suited for hydraulic line routing where a directional change between mismatched thread types is required. The #5 MJIC x #10 MORB 90° is rated to 5,000 PSI maximum dynamic pressure and uses an Nbr O-ring seal on the ORB end for reliable, leak-resistant connections.

Steel forging construction provides the strength and dimensional consistency expected in demanding hydraulic applications. The adjustable O-ring boss end allows for precise port orientation during installation, a practical advantage in tight or constrained assemblies.

SKU: 6801-05-10-NWO-FG

Supplier Part Number (MPN): 6801-05-10-NWO-FG

Alternate Part Numbers: 6801-05-10-NWO, C1BX95
