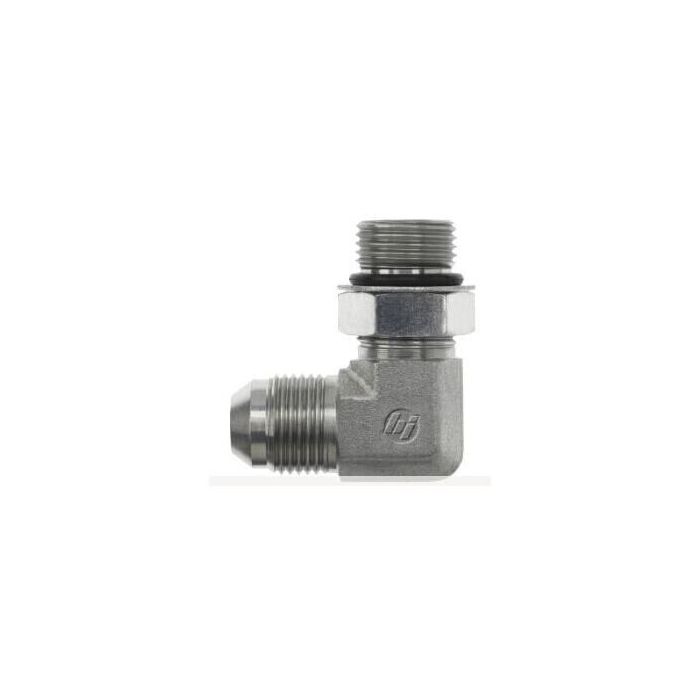

main product photo

06MJ-04MAORB 90 ELB

Ask A Question

Description & Features

The 06MJ-04MAORB 90 ELB from Brennan Industries Inc. is a high-quality adapter designed for demanding industrial applications. Constructed from steel forging it offers unmatched durability and reliability in high-pressure environments. This 90-degree elbow features a Male JIC SAE 37 Degree Flare on one end and a Male SAE Adjustable O-Ring Boss on the other complying with the SAE J514 specifications for precision and compatibility.

With an overall length of 1.190 mm and a centerline length of 1.060 mm its engineered to optimize space without sacrificing performance. The adapter supports a maximum dynamic pressure of up to 6 000 psi making it suitable for heavy-duty hydraulic systems. The NBR O-Ring ensures a secure and leak-proof seal providing long-lasting and efficient service.

Designed for industrial use this adapter is ideal for professionals who require reliable and efficient connections. It meets stringent quality standards ensuring that it performs consistently under extreme conditions.

Supplier Part Number: 6801-06-04-NWO-FG

MPN: 6801-06-04-NWO-FG

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Cubic Inch Space L x W x H Dimensions
1.111 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.19 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.19 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-NWO-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18, 7/16-20

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Bobby W on Feb 16, 2026, 3:39 PM
trying to swap out an elbow on a hydraulic line, what threads are on each end of this 06MJ-04MAORB 90?
Answer by: Customer Support on Feb 17, 2026, 4:12 PM
On one side you have a male JIC SAE 37 degree flare with a 9/16-18 thread. The other side is a male SAE adjustable O-ring boss with a 7/16-20 thread, using an NBR O-ring seal.
Question by: Denise B on Mar 17, 2026, 9:43 AM
got a tight spot in my hydraulic line where a straight fitting just ain't gonna work, this 90-degree elbow rate for high pressure systems or is it more of a low-demand part?
Answer by: Customer Support on Mar 19, 2026, 7:23 AM
At 6,000 psi maximum dynamic pressure, it handles serious hydraulic loads without issue. The body is steel forging, so it's built for the kind of continuous stress you'd see in heavy industrial equipment. The NBR o-ring on the adjustable boss end locks in a leak-free seal even under that pressure. For most high-demand hydraulic circuits, this fitting is well within its range.
