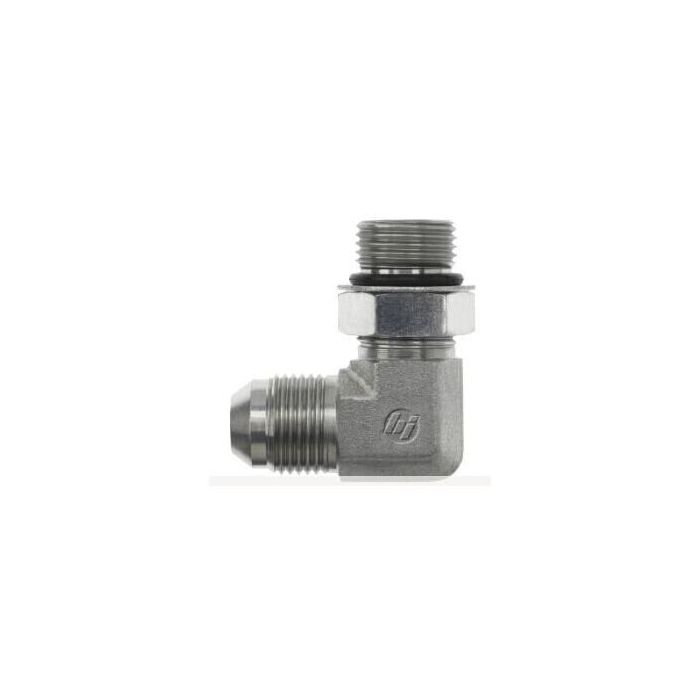

06MJ-05MAORB 90 Elbow Stnls

This 90-degree elbow fitting is meticulously crafted from straight stainless steel, ensuring robust performance and exceptional durability in demanding industrial environments. Designed primarily for hydraulic applications, the fitting features a Male JIC SAE 37-degree flare thread on one end and a Male SAE Adjustable O-Ring Boss thread on the other, both conforming to the SAE J514 standard. These precision threads provide secure, leak-proof connections in high-pressure systems, supporting up to 6,000 psi. The NBR O-ring seal enhances its reliability, making it suitable for various hydraulic fluids.

With a compact overall length of 1.190 mm and a centerline length of 1.060 mm, this elbow is engineered for efficient space utilization in tight setups. Its 0.625 mm hex size facilitates easy installation and maintenance. Manufactured by Brennan Industries, the fitting is part of the 6801-NWO-FG series, known for its high quality and compatibility with a range of industrial equipment.

SKU: 6801-06-05-NWO-SS

Supplier Part Number (MPN): 6801-06-05-NWO-SS
