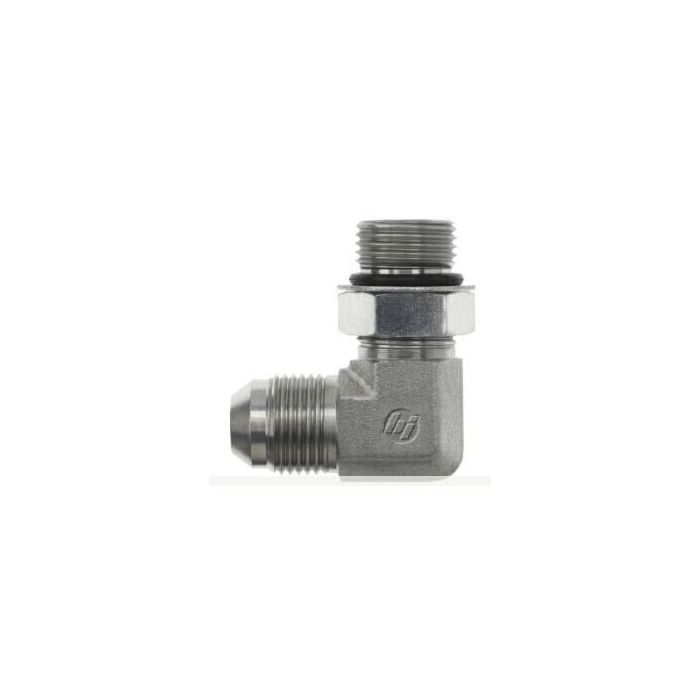

08MJ-08MAORB 90 ELB

Description & Features

The 08MJ-08MAORB 90Deg Elbow Forged is an essential component designed for high-pressure industrial applications. Manufactured using steel forging this elbow ensures robust performance and longevity. It features threads conforming to SAE J514 specifications making it compatible with a variety of hydraulic systems.

With a maximum dynamic pressure capability of up to 6 000 psi this elbow is built to withstand demanding conditions. The 90-degree angle allows for seamless integration and efficient directional flow management within systems. The elbow's exact dimensions such as a centerline length of 1.250 mm and an overall length of 1.450 mm ensure precise fitting and ease of installation.

The material used for the O-ring/seal is NBR providing reliable sealing and resistance to wear and tear. Designed by Brennan Industries Inc this elbow holds the promise of quality and reliability. Both ends of the elbow feature 3/4-16 thread sizes suitable for male JIC SAE 37-degree flare and male SAE adjustable O-ring boss applications.

The compact design of the 08MJ-08MAORB 90 ELB with a cubic inch space of 2.695 makes it an efficient solution for space-constrained environments. Industrial professionals seeking durability and performance will find this elbow indispensable.

Supplier Part Number: 6801-08-08-NWO-FG

MPN: 6801-08-08-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-08-08-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (1)

Question by: Kent P on Jul 18, 2025, 2:42 PM

Got a line that needs to make a hard turn and tie into an ORB port on a valve body, both ends on this thing 3/4-16?

Answer by: Customer Support on Jul 20, 2025, 10:05 AM

Both ends are 3/4-16, yes. One end is a male JIC SAE 37-degree flare and the other is a male SAE adjustable O-ring boss, so it'll go right between a JIC flare line and an ORB port without needing any additional adapters. Both threads conform to SAE J514, and the adjustable end lets you clock the elbow to get your routing where you need it.
