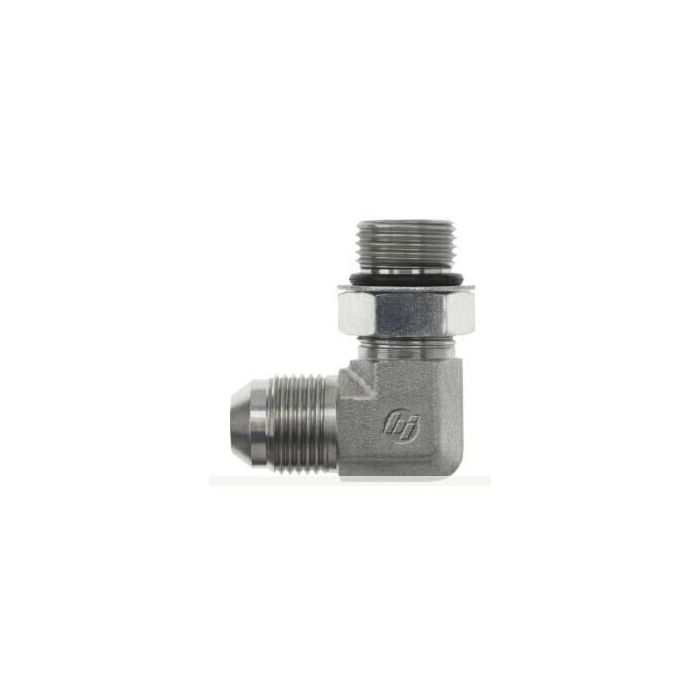

BRENNAN 10MJIC X 8MORB 316SS

Constructed from 316 stainless steel, this 90-degree elbow fitting transitions a 10 Male JIC SAE 37-degree flare connection to an 8 Male SAE Adjustable O-Ring Boss port, making it well suited for hydraulic systems where corrosion resistance and directional routing are both requirements. The adjustable O-ring boss end uses an NBR o-ring seal and conforms to SAE J514, allowing for precise port orientation during installation.

The Brennan 10MJIC x 8MORB 316SS carries a maximum dynamic pressure rating of 5,000 PSI and belongs to Brennan Industries' 6801-NWO-FG series. Thread B1 measures 7/8-14 and thread B2 measures 3/4-16, both meeting SAE J514 specifications. The stainless steel construction makes this fitting appropriate for marine, chemical processing, and other corrosive-environment hydraulic applications.

SKU: 6801-10-08-NWO-SS

Supplier Part Number (MPN): 6801-10-08-NWO-SS
