10MJ-10MAORB 90 ELB

Description & Features

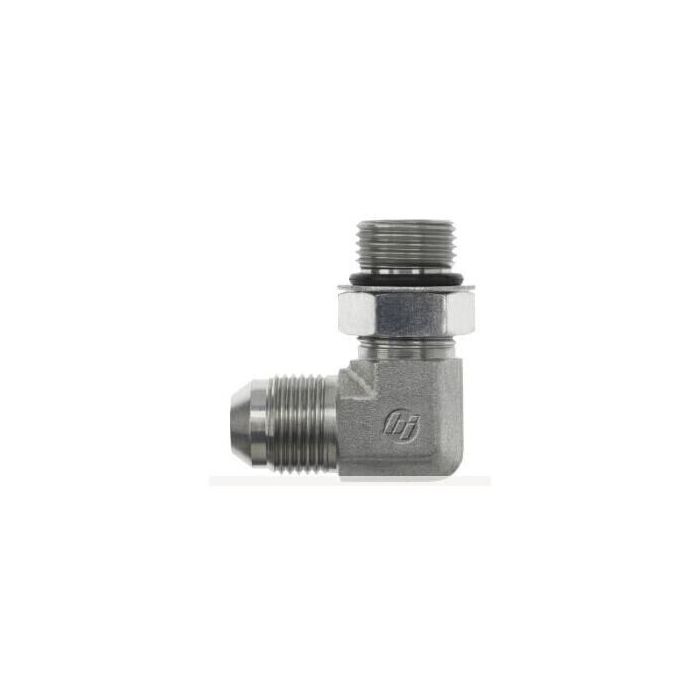

This 90-degree elbow fitting from Brennan Industries Inc is engineered from high-quality steel forging ensuring durability and reliability. It accommodates a maximum dynamic pressure of 5 000 PSI making it suitable for high-pressure applications. Designed with precision the fitting features male JIC SAE 37-degree flare (SAE J514) threads on both ends ensuring secure and leak-resistant connections. The overall length is 1.700 mm and the centerline length is 1.450 mm providing ample reach for various industrial setups. The NBR O-ring/seal material enhances the sealing capability contributing to its longevity. With a cubic inch space of 4.168 this component is compact yet robust fitting effortlessly into tight spaces. The 10MJ-10MAORB 90Deg Elbow Forged meets the rigorous demands of professional environments. California residents should be aware of the PROP-65 warning associated with this product.

Supplier Part Number: 6801-10-10-NWO-FG

Specifications

Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Male JIC, Male SAE ORB	Connection Type 1 Male SAE Adjustable ORB	Connection Type 2 Male SAE 37 deg JIC	Cubic Inch Space L x W x H Dimensions 4.168 cu-in	Dimension Standards SAE J1926, SAE J514	Dimensions 1.7 in L	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 1 x 1 in	l Dimensions 1.7 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6801-NWO-FG Series	Thread 2 Drill Dimensions 0.484 in	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14

Product Questions & Answers (2)

Question by: Dale P on Nov 25, 2025, 8:40 AM

both ends on this fitting are male threads, right? trying to figure out if it'll work going into a female ORB port on my manifold and a female JIC swivel on the hose end

Answer by: Customer Support on Nov 27, 2025, 6:10 AM

You've got it right. One end is a Male JIC SAE 37-degree flare (7/8-14 thread per SAE J514), and the other is a Male SAE Adjustable O-Ring Boss, also 7/8-14. So yeah, you'd need a female JIC connection on one side and a female ORB port on the other for this to fit up properly. The O-ring on the ORB end handles the sealing there, and the 37-degree flare geometry takes care of the JIC side.

Question by: Lynn D on Jan 22, 2026, 4:59 PM

got a tight spot on a hydraulic line, is this elbow small enough to tuck in there?

Answer by: Customer Support on Jan 24, 2026, 9:14 AM

For cramped installs, it’s a compact 90 degree elbow with a cubic inch space of 4.168, plus an overall length of 1.700 mm and a 1.450 mm centerline length.
