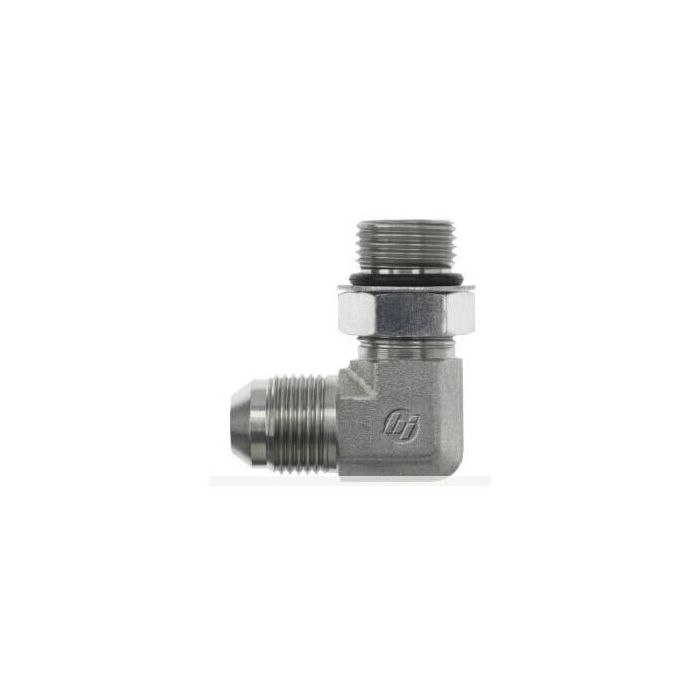

BRENNAN 10MJ-12MOR 90 SS

Description & Features

Constructed from straight stainless steel, the BRENNAN 10MJ-12MOR 90 SS is a 90-degree elbow fitting designed for hydraulic systems requiring corrosion-resistant connections and reliable sealing. The stainless steel body suits demanding environments where standard carbon steel fittings may not be appropriate.

One end features a Male JIC SAE 37-Degree Flare thread (7/8-14, SAE J514), while the other is a Male SAE Adjustable O-Ring Boss thread (1-1/16-12, SAE J514) with an NBR o-ring seal. This combination allows direct, leak-resistant connection between JIC and ORB ports in a single elbow. Rated to 5,000 PSI dynamic pressure, it is well suited for medium- to high-pressure hydraulic circuits. The fitting belongs to Brennan Industries' 6801-Nwo-Fg series.

SKU: 6801-10-12-NWO-SS

Supplier Part Number (MPN): 6801-10-12-NWO-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-10-12-NWO-SS	Product Weight 0.58 lbs

Product Questions & Answers (1)

Question by: Travis R on Nov 1, 2025, 7:05 AM

What size threads does this thing have on each end?

Answer by: Customer Support on Nov 2, 2025, 10:03 AM

One end features a 7/8-14 Male JIC SAE 37-Degree Flare thread, while the other is a 1-1/16-12 Male SAE Adjustable O-Ring Boss thread. Both threads conform to the SAE J514 specification.
