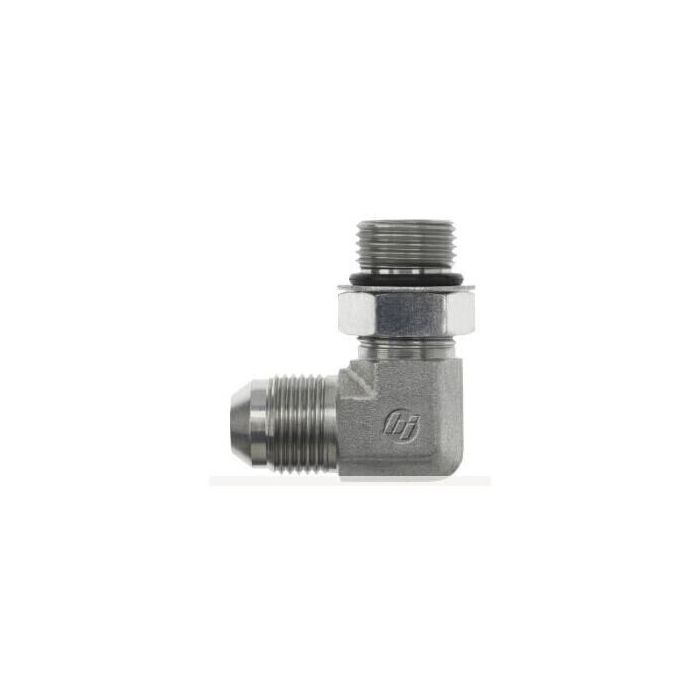

main product photo

10MJ-16MAORB 90 ELB

Ask A Question

Description & Features

The 10MJ-16MAORB 90 ELB by Brennan Industries Inc is designed for high-pressure applications with a maximum dynamic pressure rating of 4 000 psi. This elbow fitting features a male JIC 37-degree flare on one end and a male SAE adjustable O-ring boss on the other compliant with SAE J514 specifications.

Manufactured from high-quality steel forging this component ensures durability and reliability. The O-ring is made of NBR material providing a secure seal and resistance to various fluids.

The fitting has a centerline length of 1.640 mm and an overall length of 2.050 mm. The hexagonal nut measures 1.500 mm offering ease of installation and tightening.

With a compact cubic inch space of 9.701 this 90-degree elbow maximizes space efficiency in fluid systems. The thread sizes are 7/8-14 for Thread B1 and 1-5/16-12 for Thread B2.

Supplier Part Number: 6801-10-16-NWO-FG

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
5/8 in
Connection Size 2
1 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Cubic Inch Space L x W x H Dimensions
9.701 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.05 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/2 in
l Dimensions
2.05 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-NWO-FG Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
7/8-14 x 1-5/16-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Wayne C on Dec 26, 2025, 2:00 PM
What kind of pressure rating does this elbow fitting have?
Answer by: Customer Support on Dec 28, 2025, 6:50 AM
It's designed to handle high-pressure applications, up to a maximum dynamic pressure of 4,000 psi.
Question by: Eddie S on Jan 22, 2026, 4:29 PM
fitting's got a 7/8-14 JIC end and I need to hook into a 1-5/16-12 ORB port, this the right part for that?
Answer by: Customer Support on Jan 24, 2026, 6:01 AM
That's what this elbow is built for. One end is a male JIC 37-degree flare at 7/8-14, and the other is a male SAE adjustable O-ring boss at 1-5/16-12. Both threads are SAE J514 compliant, so if your port and your line match those sizes, this fitting connects them at a 90-degree angle without any adapters in between.
