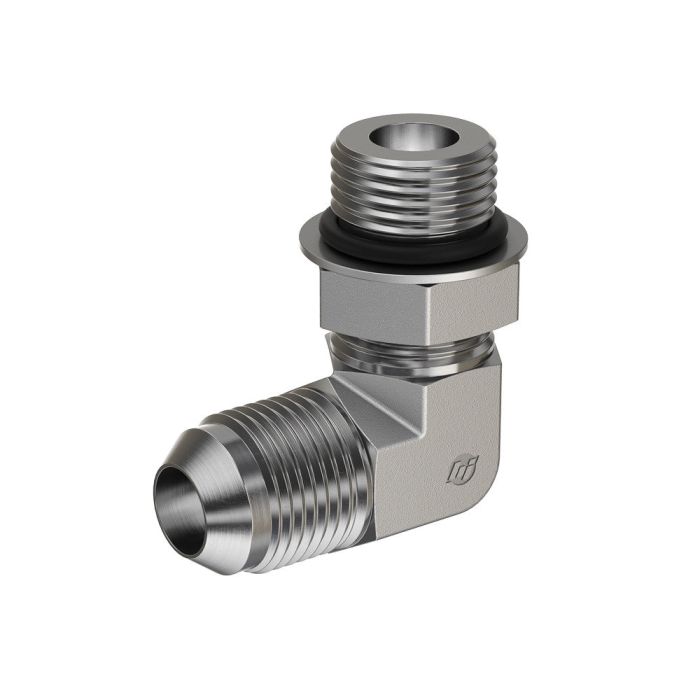

12 MJIC X 20 MORB 90

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc. the 12 MJIC X 20 MORB 90 stands as a reliable adapter suitable for various industrial applications. Designed with precision this adapter ensures a secure connection between components minimizing risks and enhancing overall functionality.

The adapter features a 90-degree angle allowing for efficient routing of fluid or gas lines. Its compatibility with #12 MJIC and #20 MORB fittings makes it a versatile component seamlessly integrating into existing setups. This product is built without adjustable ends or calibration requirements ensuring straightforward installation and maintenance.

Constructed for durability and reliability it provides consistent performance ideal for demanding environments. The lack of color coding calibrated indicators and other extra mechanical attributes simplifies its use while maintaining essential operational standards.

Supplier Part Number: 6801-12-20-NWO-FG

Specifications

Brand
Brennan Industries
Connection Size 1
3/4 in
Connection Size 2
1-1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1926, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Series
6801-NWO-FG Series
Thread Size
1-5/8-12 x 1-1/16-12

Product Questions & Answers (3)

Question by: Janice S on Jan 6, 2026, 6:28 AM
got a tight spot on my hose run. is this the 90 degree adapter that goes between a #12 MJIC and a #20 MORB?
Answer by: Customer Support on Jan 7, 2026, 7:46 AM
For a right-angle connection, this adapter is made to join a #12 MJIC fitting to a #20 MORB port, using a 90-degree body to help route the line around tighter clearances.
Question by: Danny P on Mar 9, 2026, 7:34 AM
What size are the ends on this thing?
Answer by: Customer Support on Mar 10, 2026, 12:49 PM
It's designed with a #12 MJIC on one side and a #20 MORB on the other.
Question by: Brett S on Jul 4, 2025, 9:12 AM
Does this thing need any kind of adjustment or calibration once you get it put on, or is it pretty much good to go right out of the box?
Answer by: Customer Support on Jul 5, 2025, 6:53 PM
No calibration needed at all. Once it's threaded in place connecting your #12 MJIC line to a #20 MORB port, you're done. There are no adjustable ends or calibrated indicators on this fitting, so installation is just a matter of getting it properly seated and torqued.
