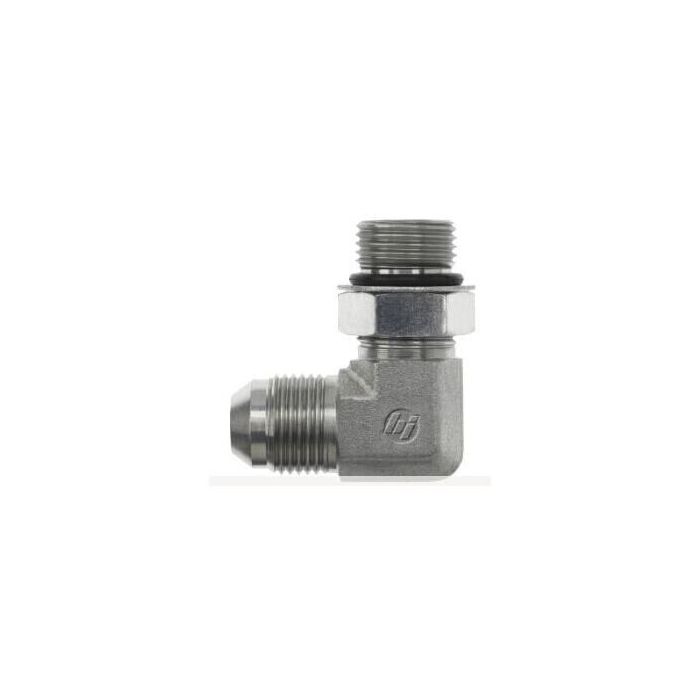

16MJ-16MAORB 90 ELBOW STNLS

This 90-degree elbow fitting is expertly crafted from straight stainless steel, offering robust durability and resistance to corrosion in demanding environments. Designed for use in hydraulic systems, this fitting features a Male JIC SAE 37-degree flare connection and a Male SAE Adjustable O-ring Boss, both conforming to SAE J514 standards. With a maximum dynamic pressure capacity of 4,000 PSI, it is suitable for high-pressure applications where reliability is critical.

The fitting's dimensions include a Brennan C hex size of 1.500 mm and a centerline length of 1.810 mm, ensuring a precise fit in your assemblies. Additionally, the O-ring seal made from NBR material enhances leak prevention and secure sealing under high-pressure conditions. Its compact overall length of 2.050 mm makes it ideal for installations with space constraints, while the thread size of 1-5/16-12 ensures compatibility with a wide range of fittings.

SKU: 6801-16-16-NWO-SS

Supplier Part Number (MPN): 6801-16-16-NWO-SS

Alternate Part Numbers: AJ16GE
