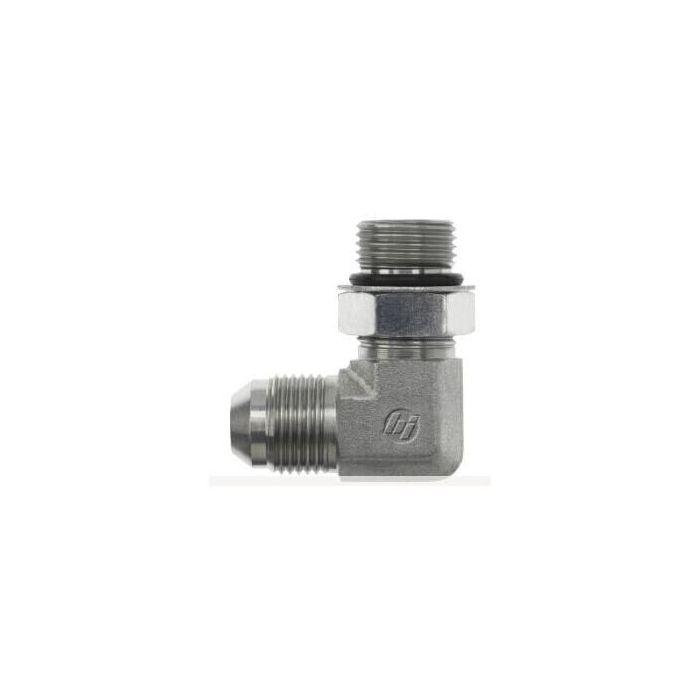

90 DEG MALE JIC 1IN X MALE ORB 1-1/4IN

Constructed from durable steel forging, this 90-degree elbow fitting combines a Male JIC 1-inch connection with a Male ORB 1-1/4-inch connection, making it ideal for demanding industrial environments. The fitting supports a robust maximum dynamic pressure of 4,000 PSI, providing reliable performance under high-pressure conditions. It features an NBR O-ring seal, enhancing its leak resistance and sealing capability.

Engineered to meet SAE J514 standards, this elbow fitting showcases precision-machined threads: a 1-5/16-12 Male JIC SAE 37 Degree Flare on one end and a 1-5/8-12 Male SAE Adjustable O-ring Boss on the other. These connections ensure a secure fit and compatibility with a variety of hydraulic systems. With a compact overall length of 2.250 mm and centerline length of 2.010 mm, this fitting is designed for efficient space use in complex assemblies.

SKU: 6801-16-20-NWO-FG

Supplier Part Number (MPN): 6801-16-20-NWO-FG

Alternate Part Numbers: 6801-16-20-NWO, A2062-20-16S
