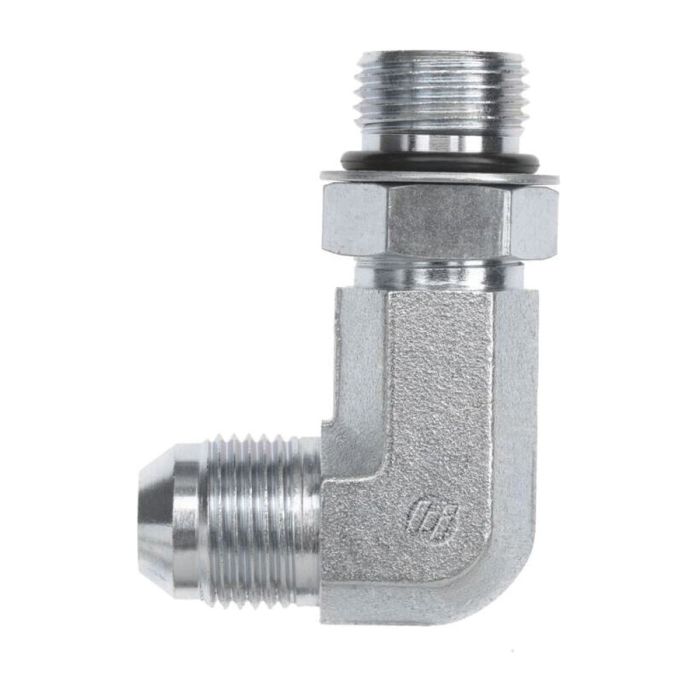

main product photo

04MJ-04MAORB 90 DEG ELBOW LONG

Ask A Question

Description & Features

The 04MJ-04MAORB 90 Degree Elbow Long fitting is suitable for various hydraulic applications. This elbow fitting ensures a reliable connection.

This 90-degree elbow provides a long bend radius for smooth flow and reduced pressure drop. It features robust construction for durability in demanding hydraulic environments.

SKU: 6801-L-04-04

Supplier Part Number (MPN): 6801-L-04-04-NWO-FG

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1926, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
6801-L-NWO-FG Series
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Gene H on Jun 5, 2025, 1:42 PM
fitting's got a long bend radius on it, does that actually make a noticeable difference in flow compared to a standard 90?
Answer by: Customer Support on Jun 7, 2025, 7:18 AM
A longer bend radius keeps the fluid moving through the turn more smoothly, which cuts down on turbulence and pressure drop compared to a short-radius 90. In hydraulic lines where you're trying to maintain efficiency, that difference adds up, especially if you've got multiple fittings in a circuit. This elbow is built with that in mind, so it's a solid choice when flow efficiency matters more than tight routing.
