16MJ-12MAORB 90 ELB LONG

Description & Features

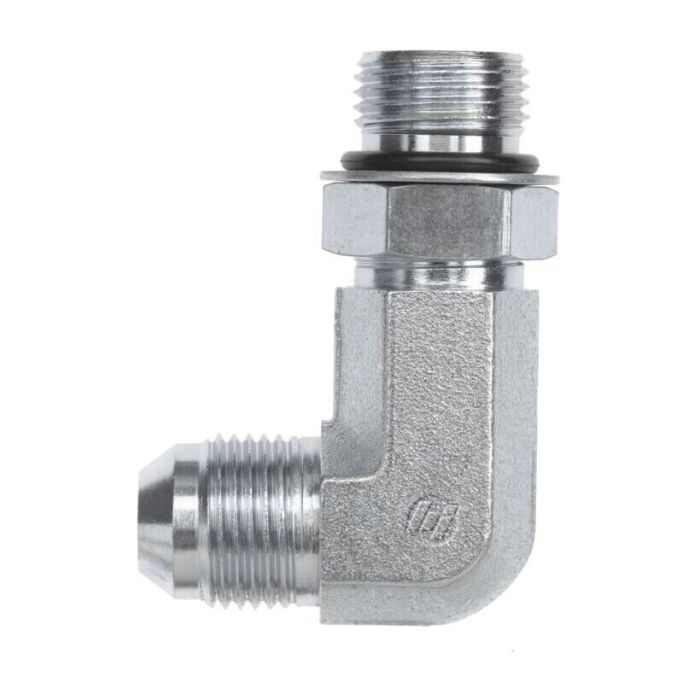

A forged steel 90-degree long elbow designed for hydraulic line routing where a gradual directional change is required, the 16MJ-12MAORB 90 ELB LONG connects a 1-5/16-12 Male JIC SAE 37-degree flare on one end to a 1-1/16-12 Male SAE Adjustable O-Ring Boss on the other. Both threads conform to SAE J514, making this fitting suitable for standard hydraulic assemblies requiring reliable, leak-resistant connections.

Manufactured by Brennan Industries from a steel forging, this fitting features an NBR O-ring seal at the adjustable O-ring boss end. The long elbow geometry provides an overall length of 3.010 inches, with a centerline length of 1.810 inches and a hex dimension of 1.250 inches. The forged construction delivers consistent wall integrity suited to demanding hydraulic service. California residents should note this product carries a Prop 65 warning.

SKU: 6801-L-16-12-NWO-FG

Supplier Part Number (MPN): 6801-L-16-12-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-L-16-12-NWO-FG	Product Weight 1.19 lbs

Product Questions & Answers (1)

Question by: Connie P on Aug 5, 2025, 12:11 PM

got a hose end that’s 1-5/16-12 JIC, will this elbow mate up on that side or am i off a size

Answer by: Customer Support on Aug 6, 2025, 3:11 PM

On the JIC side it is a 1-5/16-12 male JIC with a 37 degree flare, built to SAE J514. If your hose end is the matching female JIC 37 degree flare in 1-5/16-12, that end will thread on and seal on the flare.
