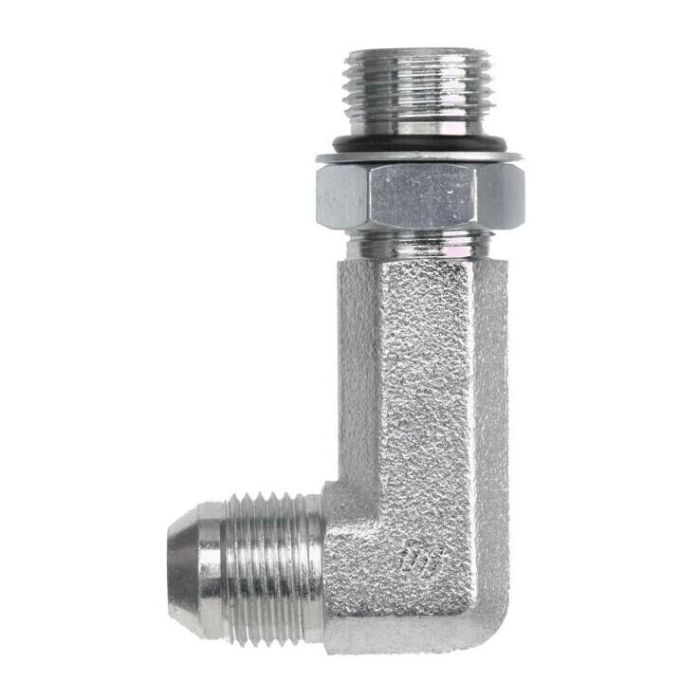

main product photo

06MJ-06MAORB 90 ELB X-LONG

Ask A Question

Description & Features

Crafted from high-quality steel forging the 90-degree elbow offers superior durability and reliability. Designed with an extended length of 2.08 mm and centerline length of 1.060 mm it ensures precise fitment.

The male JIC SAE 37-degree flare with SAE J514 specifications at both ends provides secure and leak-free connections. The inclusion of an NBR O-ring enhances the sealing capability making it ideal for demanding industrial applications.

Measuring 0.688 mm across the hex this adapter facilitates easy installation and adjustment. Suitable for various configurations it supports a 9/16-18 thread size and 0.297 mm thread drill.

Designed for high-performance the 06MJ-06MAORB 90 ELB X-LONG by Brennan Industries Inc. is a reliable choice for your professional needs.

Supplier Part Number: 6801-LL-06-06-NWO-FG

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.08 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
l Dimensions
2.08 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-LL-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Ross H on Oct 28, 2025, 3:30 PM
both ends on this elbow are male? just want to make sure before I order, got a female ORB port on my manifold and need to know what I'm mating to
Answer by: Customer Support on Oct 30, 2025, 8:13 AM
One end is a Male JIC SAE 37-degree flare, and the other is a Male SAE Adjustable O-ring Boss. Both ends are male, so you'd be threading this into female-receiving ports on each side. The O-ring Boss end uses an NBR O-ring for sealing, which handles the adjustable positioning you get with an ORB connection. Make sure your manifold port and your hose or tube end are female counterparts to match up correctly.
Question by: Ralph C on Apr 7, 2026, 3:03 PM
Will this fitting work with standard JIC fittings, or do I need something special?
Answer by: Customer Support on Apr 9, 2026, 7:54 AM
This elbow uses a male JIC SAE 37-degree flare on one end and a male SAE adjustable O-ring boss on the other, both to SAE J514 specs. It ought to play nice with other standard fittings made to those same standards.
Question by: Jimmy E on Jul 5, 2025, 8:15 PM
trying to swap an elbow on a hose run, what threads are on each end of this 06MJ-06MAORB?
Answer by: Customer Support on Jul 7, 2025, 8:25 AM
On the B1 side it is a 9/16-18 male JIC SAE 37 degree flare, SAE J514. On the B2 side it is a 9/16-18 male SAE adjustable O-ring boss, also called MAORB, SAE J514, and it uses an NBR O-ring for the seal.
