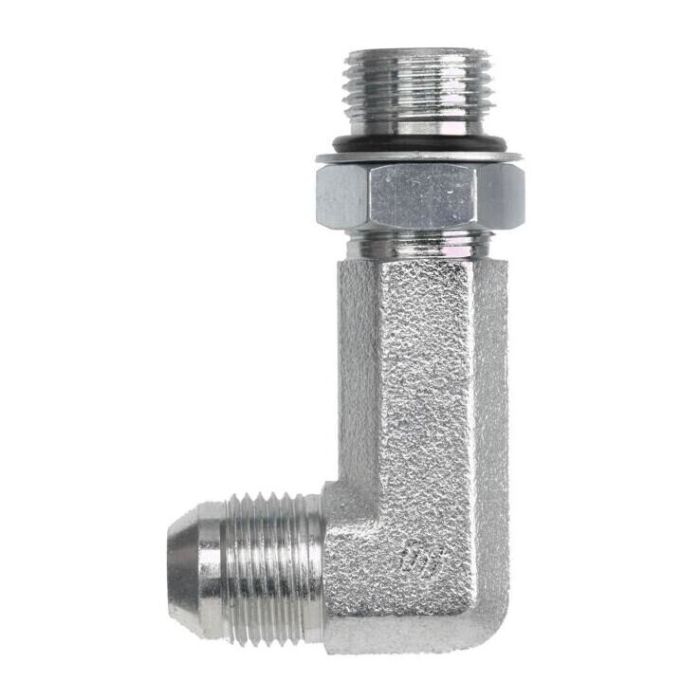

main product photo

08MJ-08MAORB 90 DEG ELBOW X-LONG

Ask A Question

Description & Features

This forged steel 90-degree elbow features an extra-long configuration. The 08MJ-08MAORB 90 DEG ELBOW X-LONG provides a 90-degree change in direction between a male JIC 37-degree flared connection and a male SAE adjustable O-ring boss (ORB) connection. Both connections feature 3/4-16 threads conforming to SAE J514 specifications.

With a centerline length of 1.25 inches and an overall length of 2.48 inches, this fitting utilizes NBR O-ring seal material and a 0.875 inch C Hex 1 dimension.

SKU: 6801-LL-08-08-NWO-FG

Alternate Part Numbers: 6801-LL-08-08, A206209-8-8S

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.48 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
2.48 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6801-LL-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Curt M on Dec 28, 2025, 12:16 PM
Will this fitting work with regular hydraulic fluid, or is there a specific type it needs?
Answer by: Customer Support on Dec 29, 2025, 5:32 PM
This elbow fitting is designed with NBR O-ring seal material, which is commonly used with many types of hydraulic fluids.
