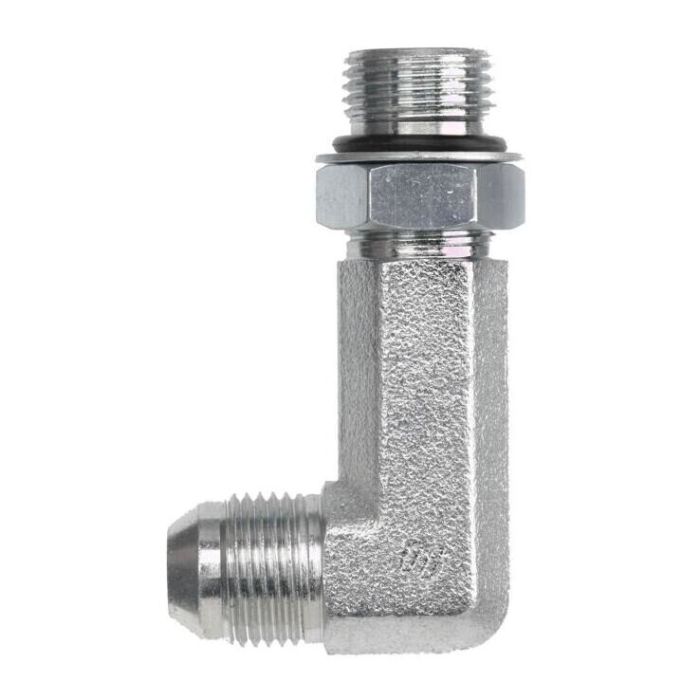

10MJ-10MAORB 90 DEG ELBOW X-LONG

A steel forging construction makes the 10MJ-10MAORB 90 Deg Elbow X-Long a reliable choice for high-pressure hydraulic line routing where a 90-degree directional change is required. Both ends carry 7/8-14 threads conforming to SAE J514, one end is a Male JIC SAE 37-Degree Flare and the other is a Male SAE Adjustable O-Ring Boss, with an NBR o-ring seal providing leak-resistant performance at the ORB connection.

At 2.89 inches overall length with a 1.45-inch centerline length, this extra-long elbow provides additional clearance for installations where standard-length fittings create positioning or assembly constraints. The adjustable o-ring boss end allows for precise port orientation, a practical advantage in tight or congested hydraulic manifold or component configurations. California residents should note that this product carries a Prop 65 warning.

SKU: 6801-LL-10-10-NWO-FG

Supplier Part Number (MPN): 6801-LL-10-10-NWO-FG

Alternate Part Numbers: 6801-LL-10-10-3.25, 6801-LL-10-10-NW, A206209-10-10S
