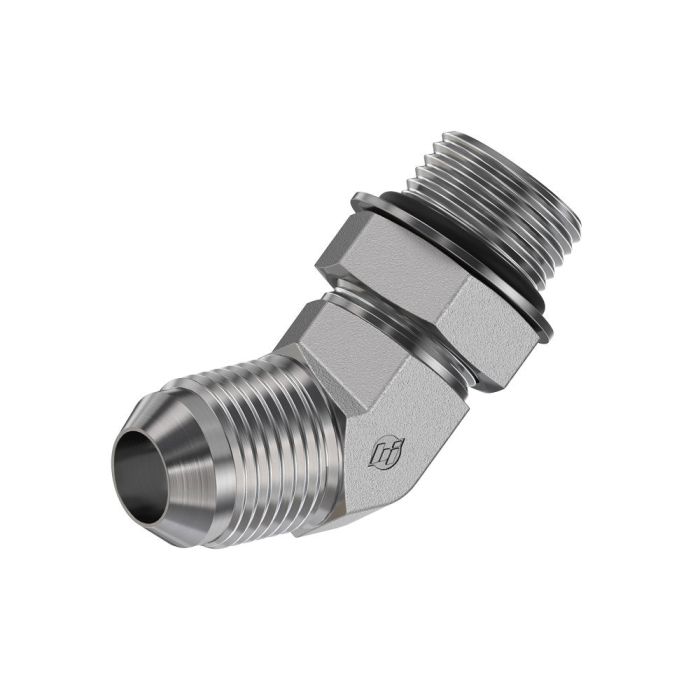

BRENNAN 04MJ-04MAORB 45 ELBOW STNLS

Ask A Question

Description & Features

This stainless steel 45-degree elbow features a male JIC SAE 37-degree flare on one end and a male SAE adjustable O-ring boss on the other. The BRENNAN 04MJ-04MAORB 45 ELBOW STNLS is manufactured from straight stainless steel, ensuring durability and resistance to corrosion in demanding hydraulic environments. The O-ring seal is constructed from NBR (Nitrile Butadiene Rubber) for a reliable, leak-free connection.

It conforms to SAE J514 standards for both thread types, with a 7/16-20 thread size on both ends. The fitting has a C Hex 1 measurement of 0.563 mm, a centerline length of 0.720 mm, and an overall length of 1.050 mm.

SKU: 6802-04-04-NWO-SS

Supplier Part Number (MPN): 6802-04-04-NWO-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.05 in L
Fitting Type
45 deg Elbow
Hex Size
0.563 in
l Dimensions
1.05 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6802-NWO-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Cody A on Jan 22, 2026, 3:20 PM
Will this fitting hold up if I'm using it with some pretty corrosive stuff?
Answer by: Customer Support on Jan 23, 2026, 8:14 PM
This elbow is manufactured from straight stainless steel, which offers good durability and corrosion resistance, even in demanding hydraulic applications.
