#5 MJIC X #6 MORB 45*

Description & Features

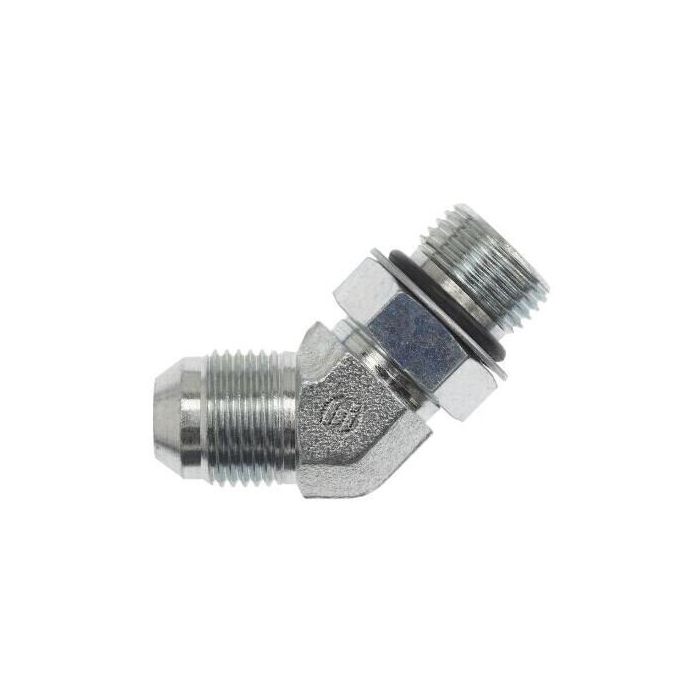

Constructed from durable steel forging, this 45-degree elbow fitting is designed for optimal performance in demanding industrial environments. The #5 MJIC X #6 MORB 45* fitting features a male JIC SAE 37-degree flare thread on one side and a male SAE adjustable O-ring boss on the other, providing versatility for various hydraulic applications. Its NBR O-ring ensures a reliable seal, maintaining integrity under challenging conditions.

Complying with SAE J514 standards, this fitting exhibits precise threading with a 1/2-20 size for the JIC end and a 9/16-18 size for the MORB end. The compact design, with an overall length of 1.140 mm and centerline length of 0.820 mm, allows for easy integration into tight spaces without compromising functionality. Its robust construction and adherence to industry standards make it a reliable choice for hydraulic systems requiring secure and efficient connections.

SKU: 6802-05-06-NWO-FG

Supplier Part Number (MPN): 6802-05-06-NWO-FG

Alternate Part Numbers: 2061-6-5S, 6802-05-06, 6802-05-06-NWO, A2061-6-5S, C1DY84

Specifications

Brand
BRENNAN
Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.14 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
11/16 in
l Dimensions
1.14 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6802-NWO-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.234 in
Thread Size
9/16-18 x 1/2-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Dimensions Price Action
05MJ-05MAORB 45 ELB FORG

6802-05-05-NWO-FG

5/16 in

5/16 in

1/2-20

1.05 in L

06MJ-04MAORB 45 ELB

6802-06-04-NWO-FG

3/8 in

1/4 in

9/16-18, 7/16-20

1.08 in L

06 MJIC X 05 MORB 45

6802-06-05-NWO

3/8 in

5/16 in

9/16-18 x 1/2-20

06 MJ-06 MAORB 45 ELBOW FORGED

6802-06-06-NWO-FG

3/8 in

3/8 in

9/16-18

#6 MJIC X #10 MORB 45*

6802-06-10-NWO-FG

3/8 in

5/8 in

7/8-14 x 9/16-18

1.52 in L

06MJ-12MAORB 45

6802-06-12-NWO-FG

3/8 in

3/4 in

1-1/16-12 x 9/16-18

1.73 in L

08MJ-06MAORB 45 DEG ELBOW

6802-08-06-NWO-FG

1/2 in

3/8 in

3/4-16, 9/16-18

08MJ-08MAORB 45 ELB

6802-08-08-NWO-FG

1/2 in

1/2 in

3/4-16

1.3 in L

#10 MJIC X #10 MORB 45*

6802-10-10-NWO-FG

5/8 in

5/8 in

7/8-14

1.52 in L

#10 MJIC X #12 MORB 45*

6802-10-12-NWO-FG

5/8 in

3/4 in

7/8-14 x 1-1/16-12

1.73 in L

12MJ-08MAORB 45 DEG ELBOW

6802-12-08

3/4 in

1/2 in

3/4-16 x 1-1/16-12

12MJ-12MAORB 45 DEG Elbow Forged

6802-12-12-NWO-FG

3/4 in

3/4 in

1-1/16-12

1.73 in L

12MJ-16MAORB 45 ELB

6802-12-16-NWO-FG

3/4 in

1 in

1-5/16-12 x 1-1/16-12

1.86 in L

16MJ-12MAORB 45 DEG ELBOW

6802-16-12-NWO-FG

1 in

3/4 in

1-5/16-12 x 1-1/16-12

1.86 in L

BRENNAN FORGED 16JICX14SAE ORING

6802-16-14-NWO-FG

1 in

7/8 in

1-3/16-12 x 1-5/16-12

1.86 in L

16MJ-16MAORB 45 ELB FORG

6802-16-16-NWO-FG

1 in

1 in

1-5/16-12

1.86 in L

16MJ-20MAORB 45 DEG ELBOW

6802-16-20-NWO-FG

1 in

1-1/4 in

1-5/8-12 x 1-5/16-12

1.91 in L

20MJ-16MAORB 45 DEG ELBOW

6802-20-16-NWO-FG

1-1/4 in

1 in

1-5/8-12 x 1-5/16-12

1.91 in L

20MJ-20MAORB 45 ELB

6802-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

1.91 in L

32MJ-32MAORB 45 DEG ELBOW

6802-32-32-NWO-FG

2 in

2 in

2-1/2-12

1.86 in L
