06MJ-04MAORB 45 ELB

Description & Features

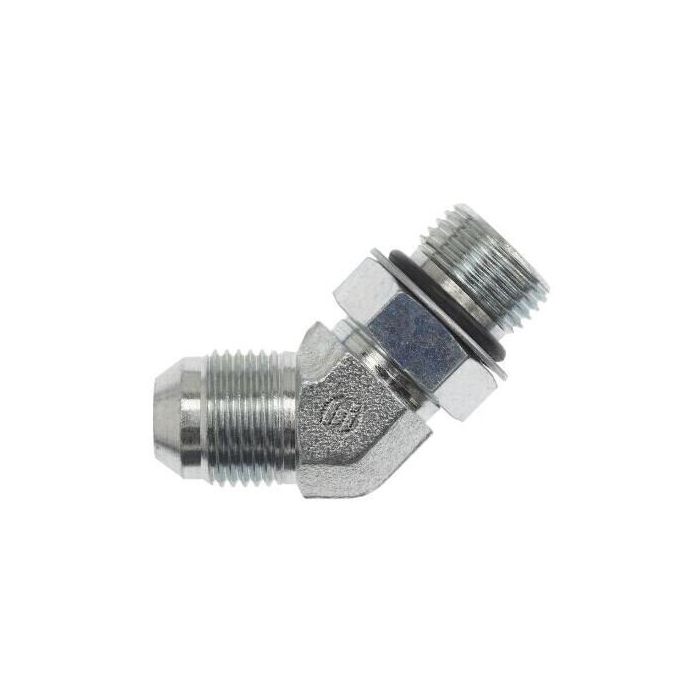

Forged from steel, this 45-degree elbow fitting connects a 9/16-18 Male JIC SAE 37-degree flare (Thread B1) to a 7/16-20 Male SAE Adjustable O-Ring Boss (Thread B2), with both threads manufactured to SAE J514. The 06MJ-04MAORB 45 ELB is part of Brennan Industries' 6802-NWO-FG series, built for hydraulic line routing where a compact directional change between mismatched thread types is required.

The forged steel construction provides structural integrity suited to demanding hydraulic environments. An NBR O-ring seal is included at the O-ring boss end, supporting reliable sealing under pressure. Overall length is 1.080 in., with a centerline length of 0.830 in. and a hex size of 0.563 in., making it compatible with standard hydraulic tooling for installation and torquing.

SKU: 6802-06-04-NWO-FG

Supplier Part Number (MPN): 6802-06-04-NWO-FG

Alternate Part Numbers: 2061-4-6S, 6802-06-04, 6802-06-04-NWO, A2061-4-6S, C1DY85, MI-08579653, MINO-00028X08105

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Male JIC, Male SAE ORB	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 1.08 in L	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 0.563 in	l Dimensions 1.08 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6802-NWO-FG Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 9/16-18, 7/16-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Dimensions
6802-05-05-NWO-FG	5/16 in	5/16 in	1/2-20	1.05 in L
6802-05-06-NWO-FG	5/16 in	3/8 in	9/16-18 x 1/2-20	1.14 in L
6802-06-05-NWO	3/8 in	5/16 in	9/16-18 x 1/2-20
6802-06-06-NWO-FG	3/8 in	3/8 in	9/16-18
6802-06-10-NWO-FG	3/8 in	5/8 in	7/8-14 x 9/16-18	1.52 in L
6802-06-12-NWO-FG	3/8 in	3/4 in	1-1/16-12 x 9/16-18	1.73 in L
6802-08-06-NWO-FG	1/2 in	3/8 in	3/4-16, 9/16-18
6802-08-08-NWO-FG	1/2 in	1/2 in	3/4-16	1.3 in L
6802-10-10-NWO-FG	5/8 in	5/8 in	7/8-14	1.52 in L
6802-10-12-NWO-FG	5/8 in	3/4 in	7/8-14 x 1-1/16-12	1.73 in L
6802-12-08	3/4 in	1/2 in	3/4-16 x 1-1/16-12
6802-12-12-NWO-FG	3/4 in	3/4 in	1-1/16-12	1.73 in L
6802-12-16-NWO-FG	3/4 in	1 in	1-5/16-12 x 1-1/16-12	1.86 in L
6802-16-12-NWO-FG	1 in	3/4 in	1-5/16-12 x 1-1/16-12	1.86 in L
6802-16-14-NWO-FG	1 in	7/8 in	1-3/16-12 x 1-5/16-12	1.86 in L
6802-16-16-NWO-FG	1 in	1 in	1-5/16-12	1.86 in L
6802-16-20-NWO-FG	1 in	1-1/4 in	1-5/8-12 x 1-5/16-12	1.91 in L
6802-20-16-NWO-FG	1-1/4 in	1 in	1-5/8-12 x 1-5/16-12	1.91 in L
6802-20-20-NWO-FG	1-1/4 in	1-1/4 in	1-5/8-12	1.91 in L
6802-32-32-NWO-FG	2 in	2 in	2-1/2-12	1.86 in L
