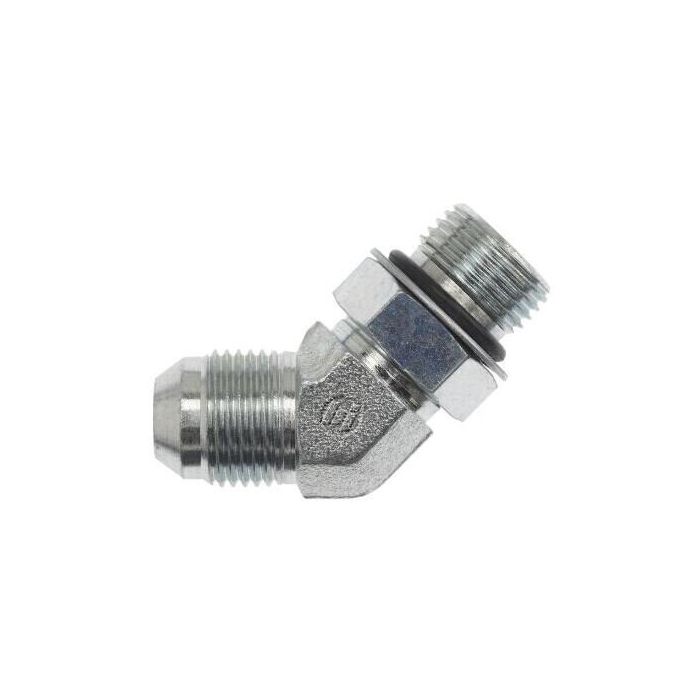

main product photo

08MJ-08MAORB 45 ELB

Ask A Question

Description & Features

The BRENNAN INDUSTRIES INC 08MJ-08MAORB 45Deg Elbow Forged adapter offers precise engineering for critical applications. Constructed from robust steel forging it ensures durability and reliability. With its 45-degree elbow design it is ideal for complex configurations.

Featuring Male JIC SAE 37 Degree Flare and Male SAE Adjustable O-ring Boss threads it meets SAE J514 specifications. The overall length is 1.300 mm and the C Hex measures 0.875 mm providing optimal fit and performance. The centerline length is 0.980 mm ensuring seamless integration.

The NBR O-ring/seal material adds an extra layer of protection preventing leaks and maintaining system integrity. This adapter is particularly suitable for high-pressure environments and demanding applications.

Supplier Part Number: 6802-08-08-NWO-FG

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
7/8 in
l Dimensions
1.3 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6802-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Steve L on May 26, 2025, 8:05 PM
Both ends on this are 3/4-16, so am I reading that right that one side is JIC flare and the other is an O-ring boss fitting?
Answer by: Customer Support on May 28, 2025, 6:24 PM
You've got it right. One end is a Male JIC SAE 37 Degree Flare and the other is a Male SAE Adjustable O-ring Boss, both sized at 3/4-16. That combination lets you transition between those two thread types at a 45-degree angle, which comes up a lot when you're routing hydraulic lines around tight spots or trying to match ports that don't share the same thread standard.
Question by: Vince C on Jun 24, 2025, 11:50 AM
What kind of applications is this elbow adapter best suited for?
Answer by: Customer Support on Jun 25, 2025, 7:08 PM
This elbow is particularly good for high-pressure setups and other demanding jobs.
