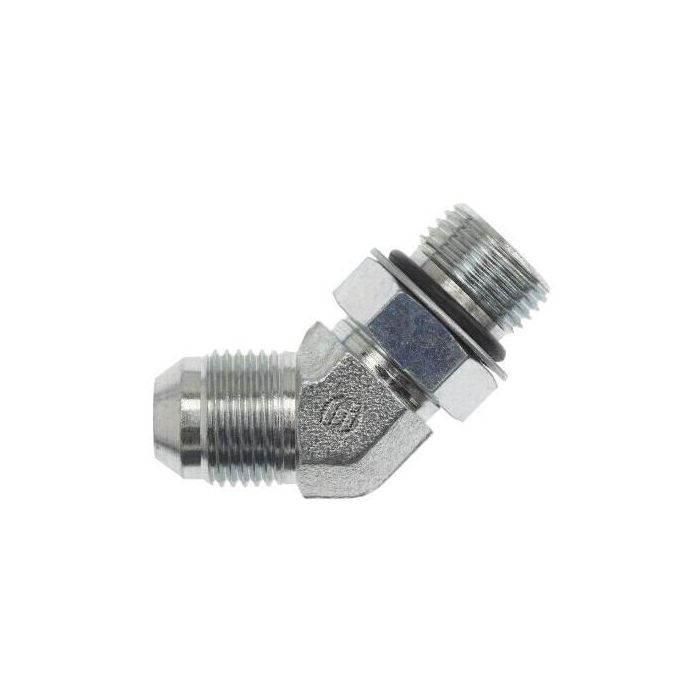

08MJ-12MAORB 45 ELBOW STNLS

Description & Features

A stainless steel 45-degree elbow fitting designed for hydraulic line connections requiring a directional change, the 08MJ-12MAORB 45 Elbow Stnls from Brennan Industries combines a Male JIC SAE 37-Degree Flare end (3/4-16, SAE J514) with a Male SAE Adjustable O-Ring Boss end (1-1/16-12, SAE J514). The adjustable O-ring boss configuration allows for precise port orientation during installation, with an NBR o-ring seal providing reliable leak resistance.

Constructed from straight stainless steel, this fitting suits applications where corrosion resistance is a priority. Part of the Brennan Industries 6802-NWO-FG series, it is sized with an overall length of 1.730 inches and a hex size of 1.250 inches. The dual SAE J514-compliant thread ends make it compatible with standard hydraulic circuit components across industrial equipment and mobile hydraulic systems.

SKU: 6802-08-12-NWO-SS

Supplier Part Number (MPN): 6802-08-12-NWO-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6802-08-12-NWO-SS	Product Weight 0.47 lbs

Product Questions & Answers (1)

Question by: Lee B on Jun 14, 2025, 2:58 PM

Does this elbow come with the O-ring already installed, or do I need to get one separately?

Answer by: Customer Support on Jun 16, 2025, 7:55 AM

This elbow fitting includes an NBR O-ring seal, so you don't have to source that separately. It's ready to go for creating a leak-resistant connection.
