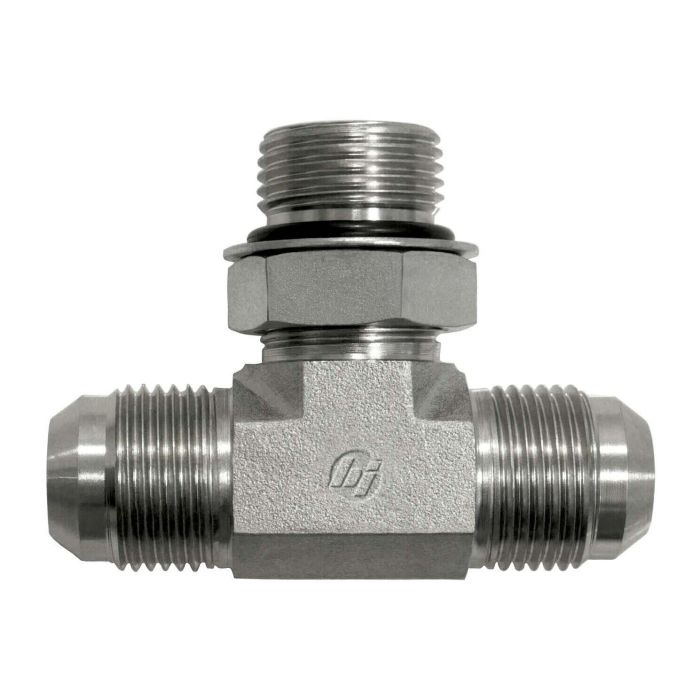

08MJ-08MJ-06MAORB BRANCH TEE

Description & Features

This branch tee, designated 08MJ-08MJ-06MAORB BRANCH TEE, features a steel forging raw material type, offering durability in demanding hydraulic applications. The fitting incorporates a Male JIC SAE 37 Degree Flare connection on two ports and a Male SAE Adjustable Oring Boss on the third.

Thread specifications include a 3/4-16 thread size for the JIC connections and a 9/16-18 thread size for the O-ring boss connection, all conforming to SAE J514 standards. The O-ring seal is constructed from NBR material.

SKU: 6803-08-08-06-NWO-FG

Supplier Part Number (MPN): 6803-08-08-06-NWO-FG

Alternate Part Numbers: 6803-08-08-06, A203003-6-8S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6803-08-08-06-NWO-FG	Product Weight 0.27 lbs

Product Questions & Answers (1)

Question by: Roger B on Jan 3, 2026, 3:11 PM

What's the deal with the different thread sizes on this branch tee?

Answer by: Customer Support on Jan 5, 2026, 6:31 AM

It's got two ports with 3/4-16 threads for the JIC connections, and one with a 9/16-18 thread for the O-ring boss. All conform to SAE J514 standards.
