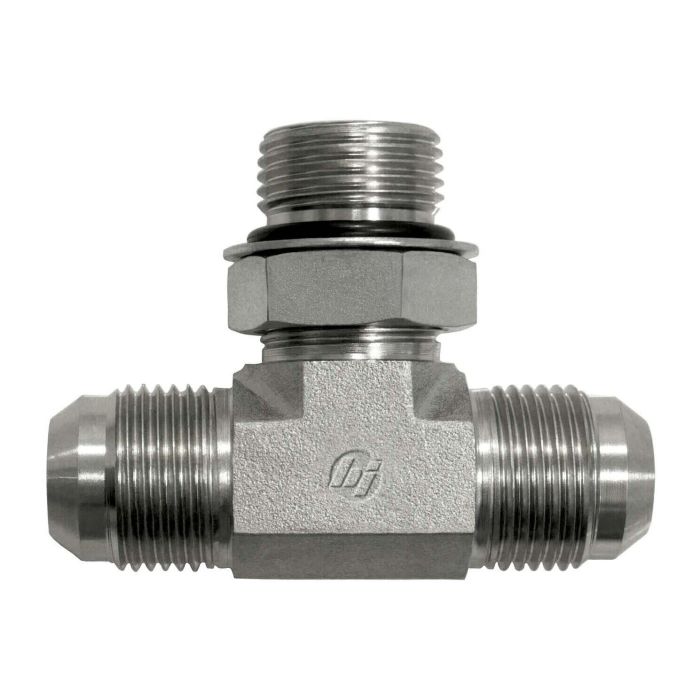

08MJ-08MJ-08MAORB BRANCH TEE

Forged from steel, the 08MJ-08MJ-08MAORB Branch Tee is a three-port hydraulic fitting designed to split or combine flow between two Male JIC SAE 37-degree flare connections and one Male SAE Adjustable O-Ring Boss outlet. All three ports are sized at 3/4-16 UNF and conform to SAE J514, making this fitting compatible with standard hydraulic tube and hose assemblies in that specification family.

The adjustable O-Ring Boss port uses an Nbr o-ring seal, providing reliable leak resistance at the boss connection. Steel forging construction gives the fitting the structural integrity expected in demanding hydraulic circuits. With an overall length of 1.450 inches and a hex dimension of 0.875 inches, it fits within compact manifold and valve block configurations where space is a consideration.

SKU: 6803-08-08-08-NWO-FG

Alternate Part Numbers: 6803-08-08-08, A203003-8-8S
