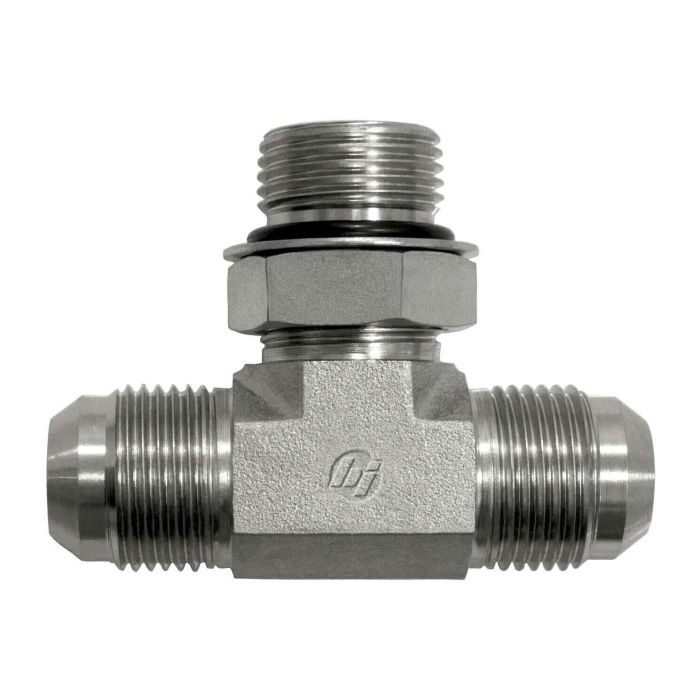

male branch tee 12 MORB x 8 JIC x 8 JIC

Ask A Question

Description & Features

This male branch tee features a 1-1/16-12 thread size on the third branch, conforming to SAE J514 specifications with a male SAE adjustable O-ring boss (MORB) connection. The other two branches feature 3/4-16 threads, also made to SAE J514, with male JIC SAE 37-degree flare connections.

Constructed from steel forging with an NBR O-ring seal material, this 6803-NWO-FG series fitting ensures reliable performance. The Brennan male branch tee 12 MORB x 8 JIC x 8 JIC has a centerline length of 1.420 mm for both branches, and an overall length of 1.940 mm.

SKU: 6803-08-08-12-NWO-FG

Supplier Part Number (MPN): 6803-08-08-12-NWO-FG

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
3/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE 37 deg JIC
Connection Type 3
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.84 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-1/4
l Dimensions
1.94 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6803-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread 3 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gary A on Jul 10, 2025, 5:42 PM
What size threads are on this tee?
Answer by: Customer Support on Jul 11, 2025, 6:37 PM
This tee features a 1-1/16-12 thread size on one branch, and 3/4-16 threads on the other two. All threads conform to SAE J514 specifications.
