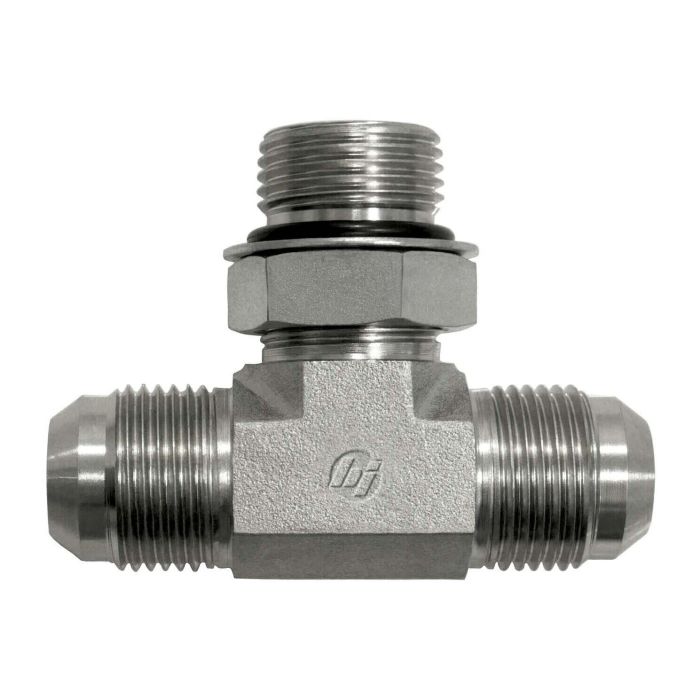

20MJ-20MJ-20MAORB BRANCH TEE

Engineered for optimal performance in industrial hydraulic systems, this branch tee is crafted from robust steel forging, ensuring durability and reliability. The 20MJ-20MJ-20MAORB Branch Tee features a versatile configuration with male JIC SAE 37-degree flare connections, ideal for secure and leak-resistant fittings. Adhering to SAE J514 standards, this component is designed to meet the rigorous demands of various hydraulic applications.

Each end of the tee is equipped with threads measuring 1-5/8-12, offering consistent connectivity across multiple systems. The male SAE adjustable O-ring boss thread enhances sealing efficiency, supported by an NBR O-ring seal for added protection against fluid leakage. With a compact overall length of 2.250 mm, this branch tee is suitable for tight spaces without sacrificing functionality.

SKU: 6803-20-20-20-NWO-FG

Alternate Part Numbers: 6803-20-20-20, 6803-20-20-20-NWO, 6803-20-20-20NWO, A203003-20-20S
