12 R50X

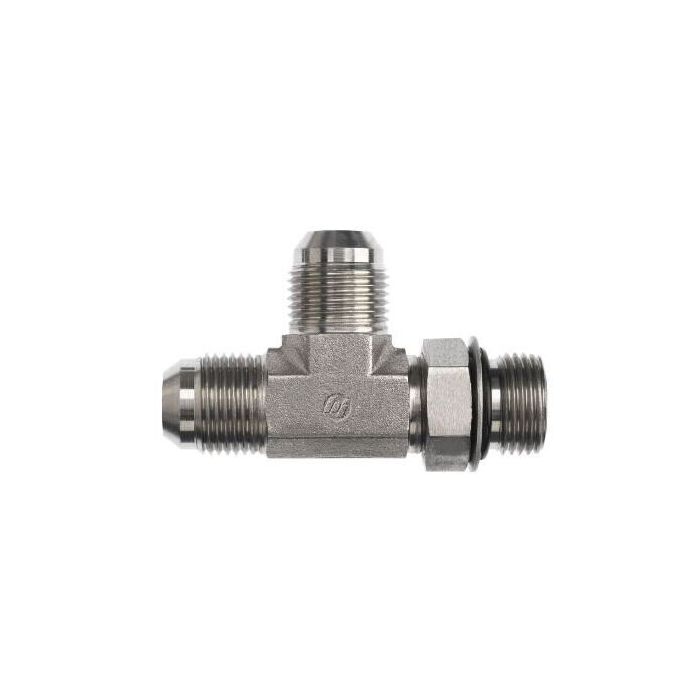

Forged from steel, the 12 R50X is a tee fitting designed for hydraulic systems requiring a mix of JIC and O-ring boss connections at the same junction point. Two ports, both 1-1/16-12, are configured as Male JIC SAE 37° Flare threads conforming to SAE J514, while the branch port uses a Male SAE Adjustable O-Ring Boss thread of the same size. The NBR o-ring seal material provides reliable fluid containment at the branch connection. All three ports share a 0.609 in. drill diameter, keeping flow paths consistent throughout the fitting.

The forged steel construction offers the structural integrity expected in demanding hydraulic circuit work. With a hex dimension of 1.250 in. and centerline lengths of 1.660 in. and 1.940 in., this fitting is compact enough for tight installations while accommodating standard 3/4 in. nominal line sizes across all ports.

SKU: 6804-12-12-12-NWO-FG

Supplier Part Number (MPN): 6804-12-12-12-NWO-FG

Alternate Part Numbers: 6804-12-12-12, 6804-12-12-12-NW, 6804-12-12-12-NWO, 85303-04, A203005-12-12S
