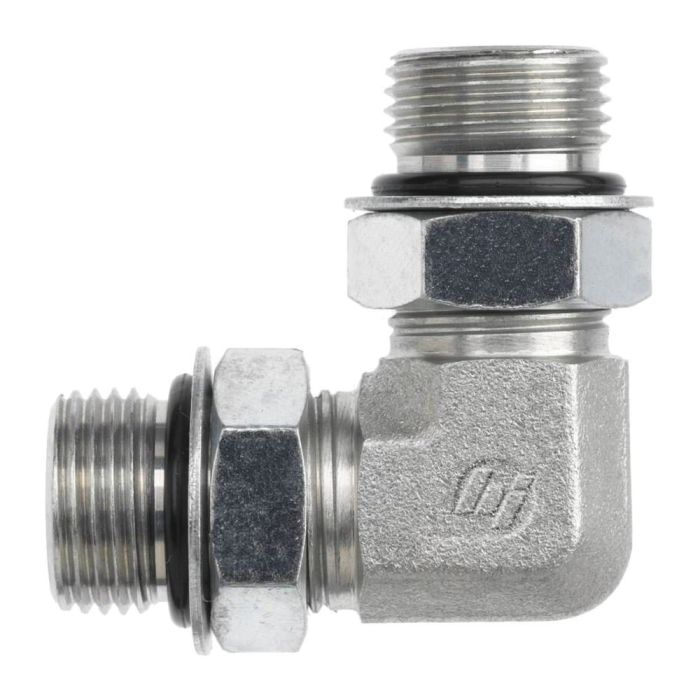

#8 MORB X #8 MORB 90 DEG

Description & Features

Crafted from durable steel forging, this 90-degree elbow fitting ensures reliable performance in demanding industrial environments. Featuring a male SAE adjustable O-ring boss thread type on both ends, it is designed to meet SAE J514 specifications, offering precise connectivity and leak-free sealing. The #8 MORB X #8 MORB 90 DEG fitting is ideal for hydraulic systems requiring tight bends and compact installations. With an overall length of 1.450 mm and a consistent thread size of 3/4-16, it provides a robust solution for integrating components in a variety of hydraulic applications.

Equipped with NBR O-ring seals, this elbow fitting enhances resistance to oil and abrasion, ensuring long-term reliability. The consistent centerline length and hex dimensions of 0.875 mm highlight its precision engineering. This fitting is compliant with California’s PROP-65 regulations, ensuring safety in application. Its adaptability is further demonstrated by the compatibility with multiple part numbers, enhancing its utility in diverse systems.

SKU: 6807-08-08-NWO-FG

Alternate Part Numbers: 6807-08-08, 6807-08-08-NWO, C1EU13, MI-08579789, MINO-00028X08241

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926/J514
Dimensions
1.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.45 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6807-NWO-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6807-10-10-NWO Steel Male ORB 90 deg Elbow

5/8 in

5/8 in

7/8-14

1 x 1 in

06MAORB-06MAORB 90 DEG ELBOW

6807-06-06-NWO-FG

3/8 in

3/8 in

9/16-18

11/16 in

20MAORB-20MAORB 90 DEG ELBOW

6807-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-5/8-12

1-7/8 in

Product Questions & Answers (1)

Question by: Curt H on Aug 16, 2025, 8:06 PM
Is the thread size the same on both ends of this elbow?
Answer by: Customer Support on Aug 18, 2025, 6:18 AM
Yes, both ends feature a 3/4-16 thread size.
