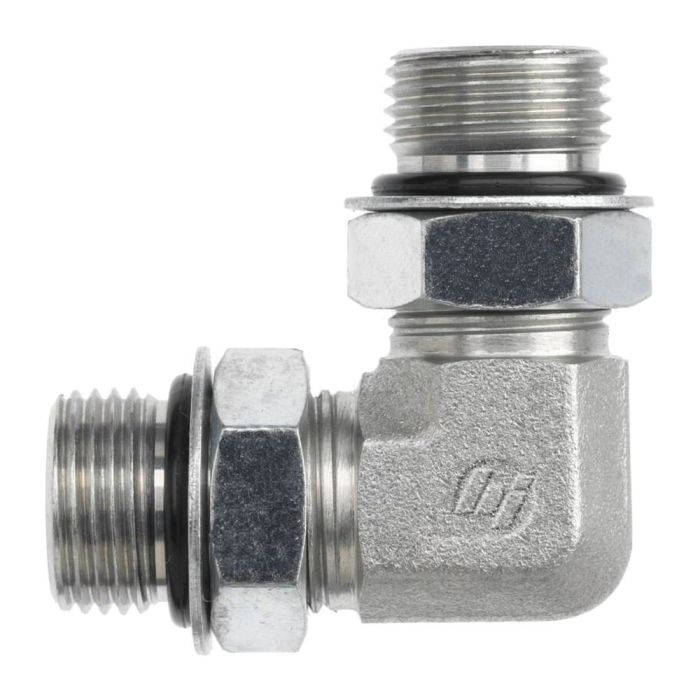

20MAORB-20MAORB 90 DEG ELBOW

Ask A Question

Description & Features

The 20MAORB-20MAORB 90 DEG ELBOW features male SAE adjustable O-ring boss connections on both ends, adhering to SAE J514 specifications.

Constructed from durable steel forging, this elbow fitting is part of the 6807-NWO-FG series and includes NBR O-ring seals for reliable performance. The centerline length and overall length both measure 2.250 inches, with a C Hex of 1.875 inches on both connection ends. Thread drill size B1 and B2 are both 1.078 inches, and thread size B2 is 1-5/8-12.

SKU: 6807-20-20-NWO-FG

Supplier Part Number (MPN): 6807-20-20-NWO-FG

Alternate Part Numbers: 6807-20-20, 6807-20-20-NWO

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.25 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l Dimensions
2-1/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6807-NWO-FG Series
Thread 2 Drill Dimensions
1.078 in
Thread B1 Drill Dimensions
1.078 in
Thread Size
1-5/8-12

Product Questions & Answers (1)

Question by: Vince W on Feb 20, 2026, 4:52 PM
Is this elbow made out of steel, or is it some kind of cheaper metal?
Answer by: Customer Support on Feb 21, 2026, 6:02 PM
It's made from steel forging, so it's a pretty durable fitting.
