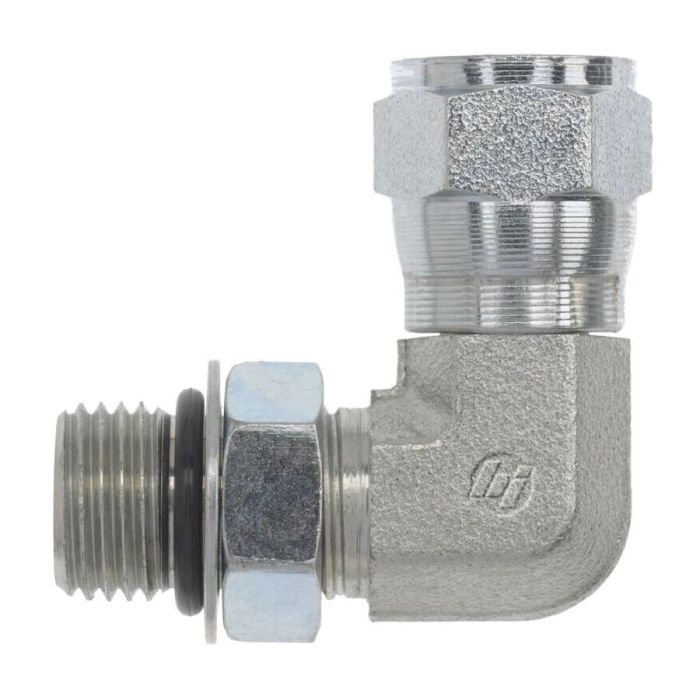

04MAORB-04FJS 90 DEG ELBOW

Description & Features

The 04MAORB-04FJS 90 Degree Elbow facilitates directional changes in hydraulic circuits.

This elbow fitting features a male adjustable O-ring boss (MAORB) connection on one end and a female JIC swivel (FJS) on the other. It allows for a 90-degree turn, providing flexibility in system layout and component placement.

SKU: 6809-04-04-NWO-FG

Supplier Part Number (MPN): 6809-04-04-NWO-FG

Alternate Part Numbers: 6809-04-04, 6809-04-04-NWO, A2214-4-4S, C1DZ38, MI-03795807, MINO-00028F02667

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Female SAE 37 deg JIC Swivel	Dimension Standards SAE J1926, SAE J514	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 0.563 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series 6809-NWO-FG Series	Thread Size 7/16-20

Product Questions & Answers (1)

Question by: Dwight R on Apr 7, 2025, 5:32 PM

Hey, will this elbow work with standard JIC fittings? Just makin' sure before I order.

Answer by: Customer Support on Apr 9, 2025, 1:52 PM

It's designed with a female JIC swivel (FJS) connection on one end, so it should pair up nicely with other standard JIC fittings.
