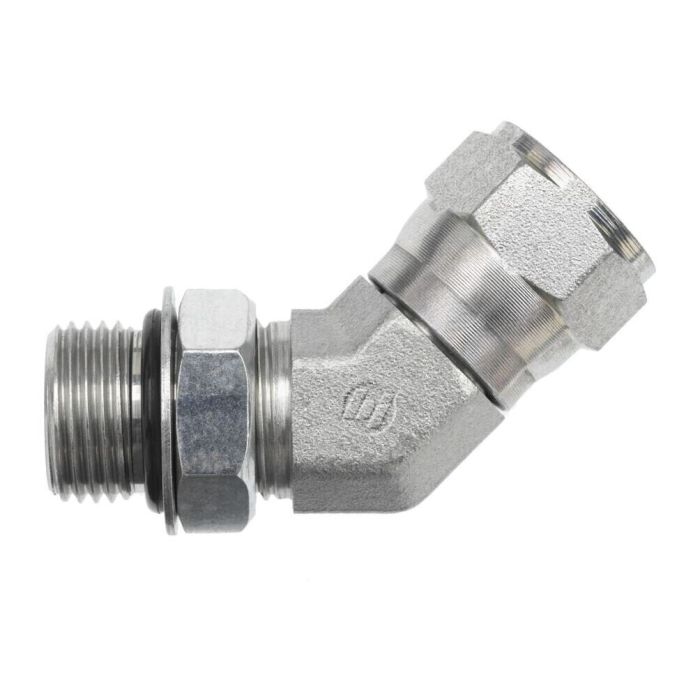

ADAPTER 12ORB12JIC45

Forged from steel, the ADAPTER 12ORB12JIC45 provides a 45-degree elbow connection between a 1-1/16-12 Male SAE Adjustable O-Ring Boss port and a 1-1/16-12 Female JIC Swivel 37-degree flare. Both thread ends conform to SAE J514, making this adapter a reliable choice for hydraulic line routing where a directional offset is required.

The adjustable O-Ring Boss end uses an Nbr O-ring seal, offering dependable resistance to hydraulic fluid leakage at the boss port. Forged steel construction provides the structural integrity expected in demanding hydraulic system environments. With a hex size of 1.250 inches on both ends, the adapter is straightforward to install and torque with standard tooling. The 45-degree elbow geometry is well suited for tight routing situations where straight adapters would create clearance or hose-bend issues.

SKU: 6810-12-12-NWO-FG

Supplier Part Number (MPN): 6810-12-12-NWO-FG

Alternate Part Numbers: 6810-12-12-NWO, C1DZ50
