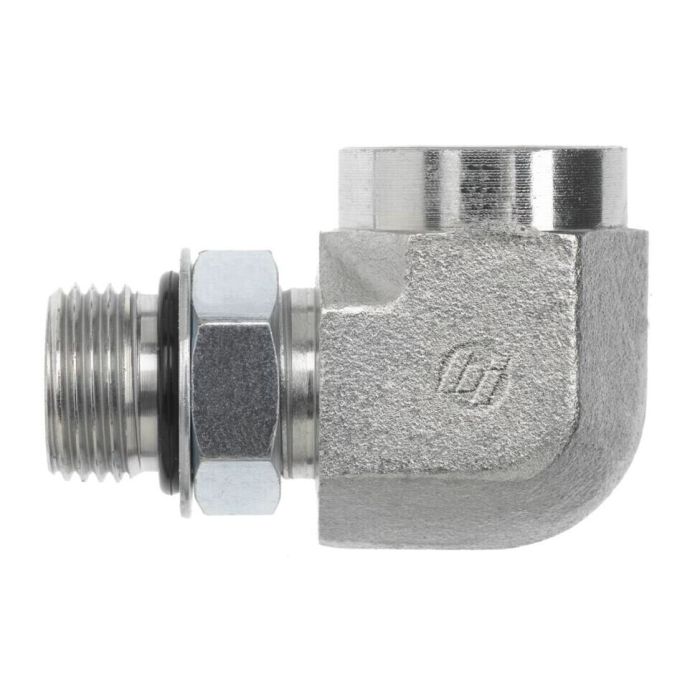

04MAORB-04FORB 90 ELB

Description & Features

The 04MAORB-04FORB 90Deg Elbow Forged by Brennan Industries Inc is designed for specialized industrial applications. This elbow is produced from high-quality steel forging ensuring durability and long-lasting performance.

It features a male SAE adjustable O-ring boss thread that complies with SAE J514 specifications providing a secure and leak-free connection. The female O-ring boss thread also conforms to SAE J514 standards ensuring compatibility with corresponding components.

With a C Hex size of 0.563 mm and centerline length of 1.230 mm this elbow offers precise dimensions for a range of setups. The overall length is 0.630 mm making it suitable for tight spaces. The O-ring material is NBR known for its resilience and resistance to various fluids.

Ideal for demanding environments the 04MAORB-04FORB 90 ELB ensures reliable connectivity. Its robust build and accurate threading make it a valuable component for industrial systems where integrity and performance are paramount.

Supplier Part Number: 6815-04-04-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6815-04-04-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Brent C on Aug 10, 2025, 2:52 PM

What kind of operating pressures can this elbow handle?

Answer by: Customer Support on Aug 12, 2025, 6:35 AM

This 90-degree elbow is made from high-quality steel forging, which should hold up well in demanding industrial systems. However, pressure ratings aren't specified here.

Question by: Neil C on Sep 8, 2025, 1:50 PM

thread size on both ends is 7/16-20 ORB on this thing, right? just want to make sure before i order a handful of em

Answer by: Customer Support on Sep 10, 2025, 6:17 AM

Both ends run 7/16-20 and both conform to SAE J514. One end is a male SAE adjustable O-ring boss and the other is a female O-ring boss, so they'll mate up with standard ORB ports and fittings at that size without any adapters in between.

Question by: Ross M on Jan 3, 2026, 1:14 PM

trying to swap out an elbow on my hose run, is this one the 7/16-20 o-ring boss on both ends?

Answer by: Customer Support on Jan 4, 2026, 5:46 PM

Both connections are SAE J514 O-ring boss threads in 7/16-20. One side is a male SAE adjustable O-ring boss, and the other side is a female O-ring boss.
