main product photo

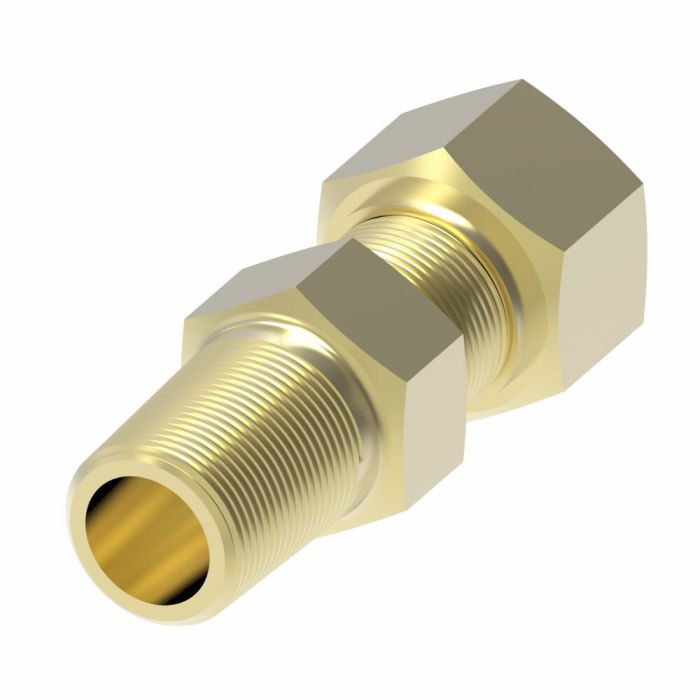

Danfoss / Eaton Brass Adapter

Ask A Question

Description & Features

This Eaton Aeroquip brass adapter features a male NPTF end and a female hose/pipe/tube end, both with a 0.25 inch size. The Danfoss / Eaton Brass Adapter is suitable for instrumentation, hydraulic, and pneumatic systems.

It features Dura-Kote plating for superior corrosion resistance and design flexibility with hundreds of styles to choose from, offering higher operating pressures above SAE standards. It is designed to withstand a minimum working temperature of -65 degrees Fahrenheit.

SKU: 681X4X4

Supplier Part Number (MPN): 681X4X4

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
MPT, Tube
Connection Type 1
Tube OD
Connection Type 2
Male Threaded
Finish
Nickel-Plated
Fitting Type
Connector
For Use With
Aluminum, Copper and Plastic Tubings
Hex Size
0.563 in
Material
Brass
Material Construction
Brass
nmfc
60
Segment Code
A
Series
681X Series

Product Questions & Answers (2)

Question by: Lynn P on Oct 16, 2025, 6:58 PM
what's the smallest wrench size i'd need on the hose end of this fitting?
Answer by: Customer Support on Oct 17, 2025, 9:40 PM
The hex on the hose/tube end measures half an inch, so a standard half-inch wrench will seat right on it. The male NPTF side is a quarter-inch thread, which is pretty common on instrumentation and hydraulic lines, so most folks already have what they need in the toolbox before they even open the bag.
Question by: Larry M on Dec 17, 2025, 6:56 PM
Will this adapter hold up outside? We get some pretty harsh winters here.
Answer by: Customer Support on Dec 19, 2025, 8:30 AM
Dura-Kote plating gives this adapter superior corrosion resistance, so it should be suitable for outdoor use. Just be sure to consider the minimum working temperature of -65°F.
