FB-MAORB-MJ TEE

Description & Features

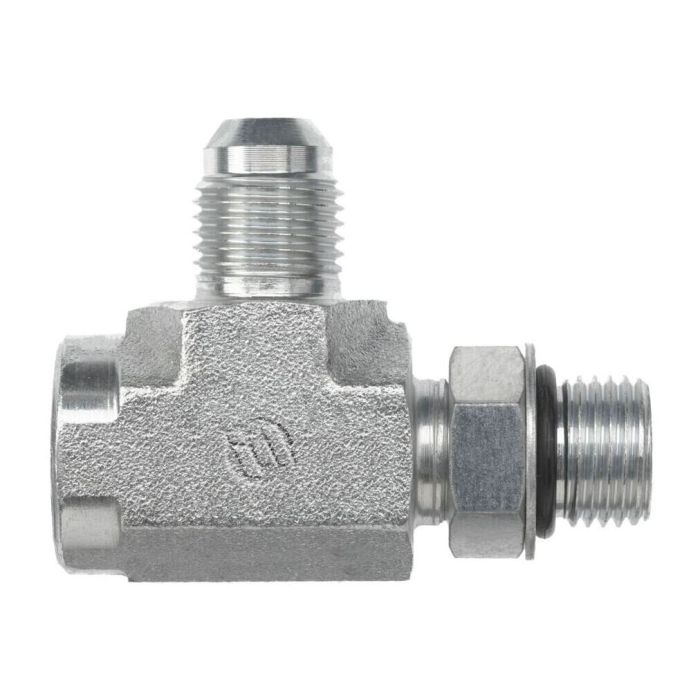

The FB-MAORB-MJ TEE, constructed from steel forging, features a female O-ring boss thread B1, along with male JIC SAE 37 degree flare thread 3, and male SAE adjustable O-ring boss thread B2, all manufactured to SAE J514 specifications. Each connection is size 9/16-18.

The centerline length 1 is 0.750 mm, and the centerline length 2 is 1.380 mm. The overall length L measures 1.220 mm. This fitting uses NBR O-ring seal material.

SKU: 6820-06-06-06-NWO-FG

Supplier Part Number (MPN): 6820-06-06-06-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6820-06-06-06-NWO-FG	Product Weight 0.26 lbs

Product Questions & Answers (1)

Question by: Janet J on Jun 3, 2025, 3:23 PM

Will this fitting work with regular JIC fittings, or does it have to be something special because of the O-ring?

Answer by: Customer Support on Jun 5, 2025, 6:42 AM

This tee fitting will connect to standard JIC SAE 37-degree flare fittings. One side includes an adjustable O-ring boss for sealing.
