04MAORB-04FORB-04FORB TEE

Description & Features

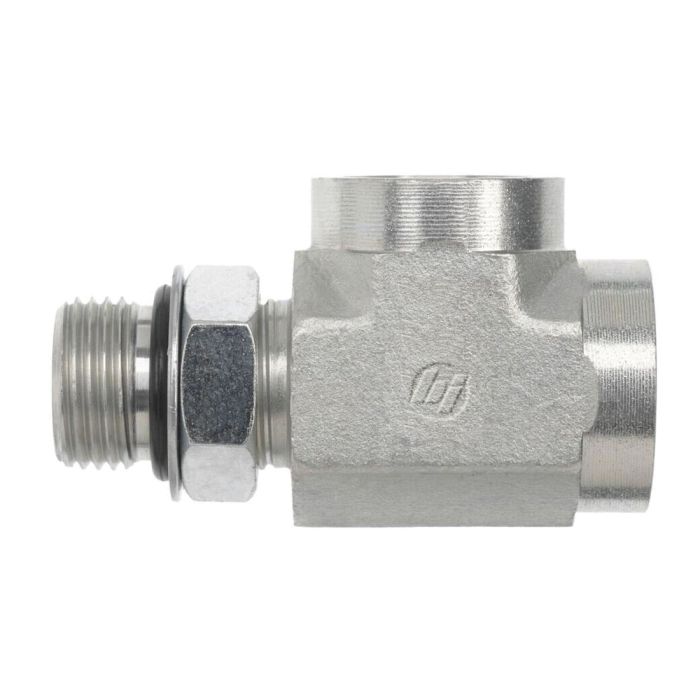

This forged steel tee fitting features three ports: one 7/16-20 male adjustable O-ring boss and two 7/16-20 female O-ring boss connections, all manufactured to SAE J514 specifications. The 04MAORB-04FORB-04FORB TEE is part of the 6835-NWO-FG series.

The O-ring seal is made of NBR material. It has a centerline length of 1.230 mm and an overall length of 0.740 mm.

SKU: 6835-04-04-04-NWO-FG

Supplier Part Number (MPN): 6835-04-04-04-NWO-FG

Alternate Part Numbers: 6835-04-04-04, 6835-04-04-04-NW

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Connection Type 3
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
0.74 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
0.563 in
l Dimensions
0.74 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6835-NWO-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread 3 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
06MAORB-06FORB-06FORB TEE FORGED

6835-06-06-06-NWO-FG

3/8 in

3/8 in

3/8 in

9/16-18

11/16 in

MAORB-FORB-FORB

6835-08-08-08-NWO-FG

1/2 in

1/2 in

1/2 in

3/4-16

7/8 in

10MAORB-10FORB-10FORB TEE FORGED

6835-10-10-10-NWO-FG

5/8 in

5/8 in

5/8 in

7/8-14

1 x 1 in

MAORB-FORB-FORB

6835-12-12-12-NWO-FG

3/4 in

3/4 in

3/4 in

1-1/16-12

1-1/4

MAORB-FORB-FORB

6835-16-16-16-NWO-FG

1 in

1 in

1-5/16-12

1-1/2 in

Product Questions & Answers (1)

Question by: Gary M on Nov 7, 2025, 7:13 PM
How long is this tee fitting from one end to the other?
Answer by: Customer Support on Nov 9, 2025, 3:22 PM
Overall length on this tee is 0.740 mm.
