45* Din X Male Metric Adj

Description & Features

Configured as a 45° elbow, this steel DIN tube to male metric adjustable adapter transitions between an M16 x 1.5 DIN tube connection on one end and an M14 x 1.5 male metric adjustable fitting on the other. The angled geometry is well suited to routing hydraulic lines in confined spaces where straight fittings would create interference or excessive bend radius in the hose or tubing.

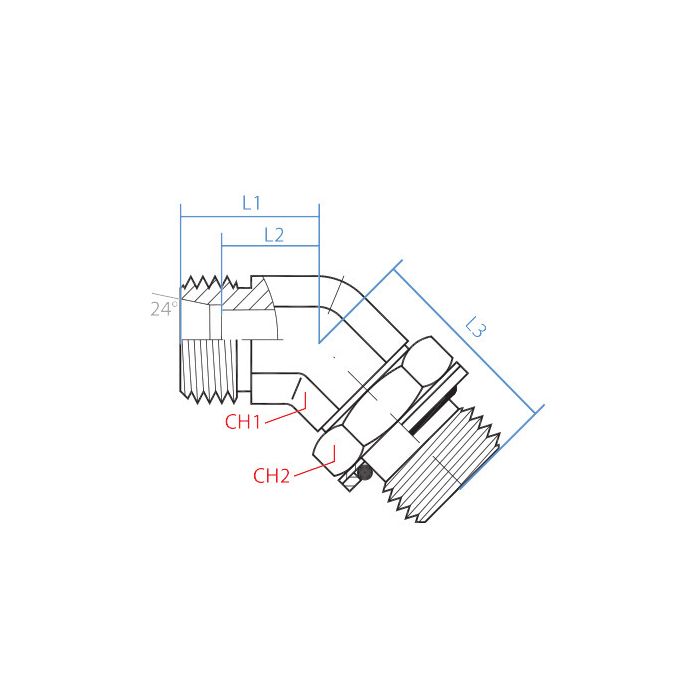

Manufactured by Adaptall, the 45° Din X Male Metric Adj is built from steel and carries key dimensions including a 20mm L1 length, 13mm L2 length, and 27mm L3 length, with wrench flat widths of 14mm and 19mm on each respective side. The adjustable metric end allows for positional alignment during installation, making it a practical choice for custom hydraulic circuit configurations.

SKU: 5066S-08-14

Supplier Part Number (MPN): 5066S-08-14

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20mm	L2 Length 13mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-08-14	Product Weight 0.13 lbs

Product Questions & Answers (3)

Question by: Marvin F on Aug 6, 2025, 9:09 AM

What's the deal with the angle on this thing? Is it a true 45 degrees?

Answer by: Customer Support on Aug 7, 2025, 10:16 AM

This elbow fitting is indeed configured at a precise 45-degree angle, making it handy for running hydraulic lines where space is tight or you need to avoid sharp bends in the hose.

Question by: Ralph A on Aug 7, 2025, 8:41 AM

got a tight routing situation on a hydraulic line and a straight fitting just ain't gonna cut it, would this 45 degree adapter give me enough angle to work with in a cramped area?

Answer by: Customer Support on Aug 8, 2025, 3:55 PM

For tight routing situations, a 45 degree elbow like this one is usually the practical fix. The angled geometry lets you redirect the line without forcing a sharp bend in the hose or tubing, which matters a lot when you're working in a confined space where a straight fitting would cause interference. The M16 x 1.5 DIN tube side connects on one end, and the M14 x 1.5 male metric adjustable end lets you rotate the fitting to the position you need before locking it down, so you have some flexibility in how you orient the whole assembly during install.

Question by: Ricky C on May 20, 2025, 8:09 PM

trying to swap out an elbow on a tight run. is this the one that goes from M16 x 1.5 DIN tube over to an M14 x 1.5 male metric?

Answer by: Customer Support on May 22, 2025, 6:42 AM

You want to match both ends. This adapter is a 45° elbow with an M16 x 1.5 DIN tube connection on one side and an M14 x 1.5 male metric adjustable end on the other.
