08MORB-08FPS STRAIGHT

Description & Features

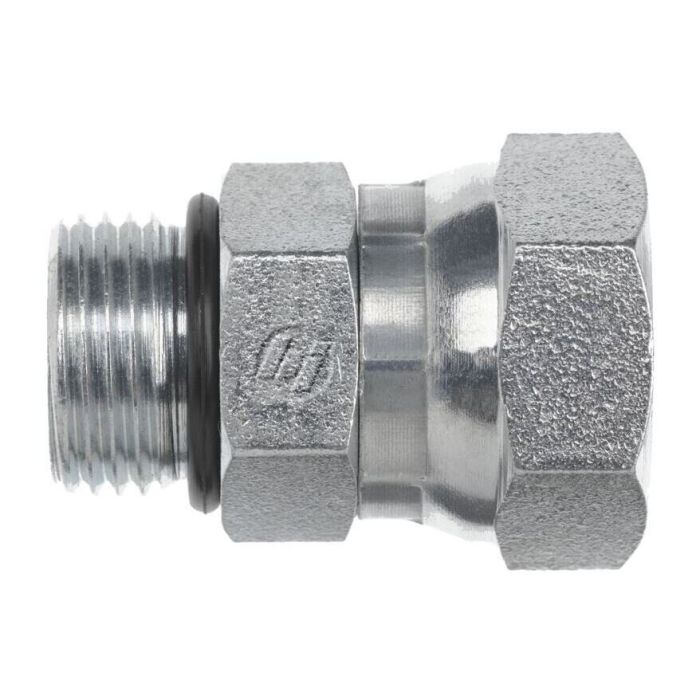

The 08MORB-08FPS Straight adapter crafted by Brennan Industries Inc is engineered from high-quality straight steel. This product features a male O-ring boss with a drill size of 0.391 mm and a female NPSM swivel measuring 0.44/0.46 mm. It adheres to SAE J514 and SAE J476 specifications respectively ensuring optimal performance.

With an overall length of 1.550 mm and a secondary length of 1.300 mm it is designed for precision in demanding environments. The adapter's C hex measurement is 1.000 mm which supports secure and robust connections. The NBR O-ring/seal material is incorporated to provide reliable sealing capabilities.

It adheres to Series 6900-O standards meeting stringent industry requirements. This adapter ensures seamless integration within your industrial systems. Prop-65 warning is applicable for California residents.

MPN: 6900-08-08-O

Supplier Part Number: 6900-08-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6900-08-08-O	Product Weight 0.18 lbs

Product Questions & Answers (3)

Question by: Todd S on May 12, 2025, 3:47 PM

What thread types are on both ends of this adapter, and will it connect a 3/4 male ORB port to a 1/2 female NPSM swivel fitting?

Answer by: Customer Support on May 14, 2025, 10:45 AM

That's what this one does. One end is a 3/4-16 male O-ring boss per SAE J514, and the other end is a 1/2-14 female NPSM swivel per SAE J476. The O-ring boss side uses an NBR seal to hold pressure at the connection point, and the swivel end gives you some rotational flexibility during assembly. Straight configuration, no angle, so it runs inline between those two ports.

Question by: Rod K on Nov 20, 2025, 7:41 AM

Will this fitting work with standard NPSM threads?

Answer by: Customer Support on Nov 21, 2025, 6:03 PM

This adapter features a female NPSM swivel designed to meet SAE J476 specifications, so it should work with standard NPSM threads.

Question by: Brett G on Aug 1, 2025, 4:43 PM

got a 3/4-16 male o-ring boss port on one side and need to hook up to a 1/2-14 female npsm swivel, is that what this adapter is?

Answer by: Customer Support on Aug 3, 2025, 4:36 PM

It bridges those two thread types in a straight configuration, with a 3/4-16 SAE J514 male O-ring boss on one end and a 1/2-14 SAE J476 female NPSM swivel on the other.
