10MORB-08FPS STRAIGHT

Description & Features

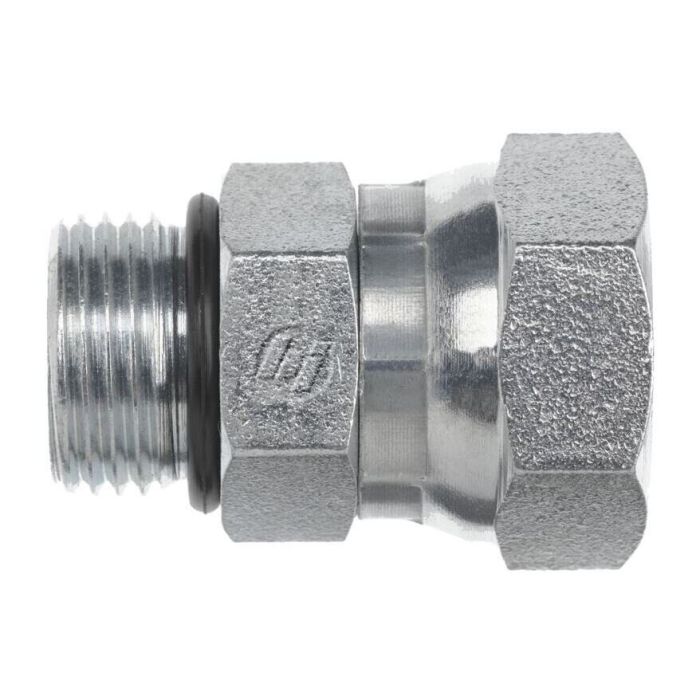

This precision-engineered adapter from Brennan Industries Inc is designed to meet the rigorous demands of industrial applications. The 10MORB-08FPS Straight constructed from high-quality straight steel ensures reliable performance and durability. Its unique combination of a male O-Ring Boss and a female NPSM swivel thread offers a versatile connection solution.

Featuring SAE J514 and SAE J476 thread specifications this adapter ensures compatibility with industry standards. The O-Ring seal material is crafted from NBR optimizing its sealing capabilities for various industrial environments. The 1 C Hex dimension along with overall lengths of 1.610 mm and 1.400 mm provide precise fit and secure installation.

The thread sizes of 7/8-14 and 1/2-14 support efficient connectivity making it a suitable choice for a wide range of configurations. Ideal for use in robust settings this adapter is a dependable component for maintaining system integrity.

Supplier Part Number: 6900-10-08-O

MPN: 6900-10-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6900-10-08-O	Product Weight 0.22 lbs

Product Questions & Answers (3)

Question by: Frank S on Mar 21, 2026, 5:43 PM

Will this fitting hold up if I'm running hydraulic fluid through it all day long?

Answer by: Customer Support on Mar 23, 2026, 6:08 AM

Designed for demanding industrial use, this adapter uses high-quality steel, so it should provide reliable performance even with continuous operation.

Question by: Kent M on Mar 11, 2026, 9:24 PM

got a hose with a 1/2-14 female npsm swivel, will this adapter mate up to it?

Answer by: Customer Support on Mar 13, 2026, 11:49 AM

For the swivel end, it’s a female NPSM swivel with 1/2-14 threads per SAE J476, so it’s made to connect to a matching 1/2-14 NPSM male. The other side is a 7/8-14 male O-Ring Boss per SAE J514, and it seals with an NBR O-ring.

Question by: Merle E on Apr 30, 2025, 8:24 PM

thread on the female end is NPSM swivel, does that mean it'll spin free before you tighten it down or does it need to be held in place during install?

Answer by: Customer Support on May 2, 2025, 10:03 AM

NPSM swivel threads are built to rotate freely, so yes, that end will spin before you commit to a final position. That's actually the point. It lets you get everything lined up without twisting the hose or line attached to it, then snug it down once you've got the angle right. The male O-Ring Boss side is what does the sealing work, so make sure that end seats properly against the port face before calling it good.
