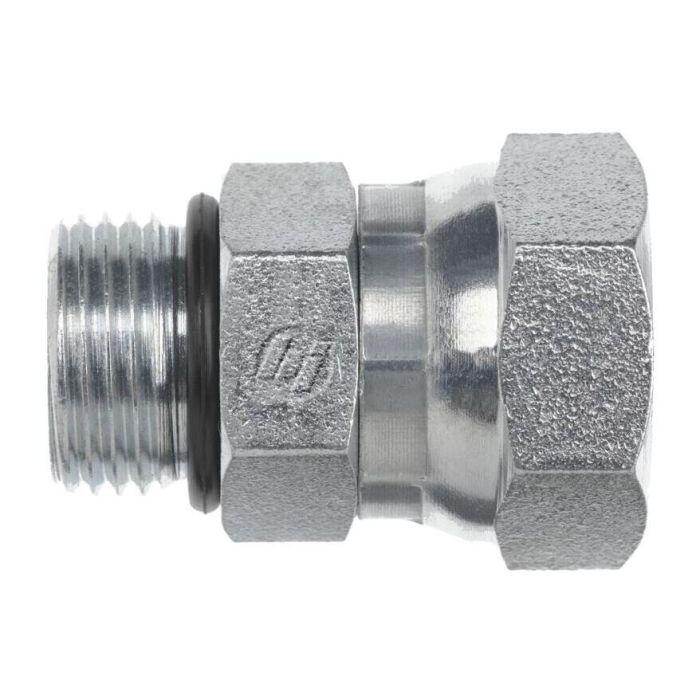

10MORB-12FPS STRAIGHT

Description & Features

The 10MORB-12FPS Straight adapter by Brennan Industries Inc is designed for robust performance in various industrial applications. It is constructed from straight steel ensuring durability and reliability under demanding conditions. This adapter features a Male O-Ring Boss (B1) thread type with a size of 7/8-14 as per SAE J514 specifications providing a secure and leak-proof connection.

The Female NPSM Swivel (B2) thread type with a size of 3/4-14 compliant with SAE J476 standards allows for versatile and flexible use in systems requiring precise and dependable connections. It incorporates an NBR O-ring/seal material to ensure optimal sealing and resistance to wear and tear.

With an overall length of 1.720 mm and a secondary length of 1.370 mm this adapter is compatible with various application setups where space and precision are key considerations. The thread drill diameters are 0.484 mm for B1 and 0.620 mm for B2 enabling effective fluid transfer and system integration.

Engineered to meet high industry standards the 10MORB-12FPS Straight adapter is an essential component for maintaining system integrity and efficiency. Note for California residents this product contains materials subject to PROP-65 warning.

MPN: 6900-10-12-O

Supplier Part Number: 6900-10-12-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6900-10-12-O	Product Weight 0.25 lbs

Product Questions & Answers (3)

Question by: Daryl G on Dec 22, 2025, 6:16 AM

trying to swap an old fitting out. is this one the straight adapter with 7/8-14 male ORB on one side and a 3/4-14 female NPSM swivel on the other?

Answer by: Customer Support on Dec 23, 2025, 9:50 PM

The B1 end is a 7/8-14 Male O-Ring Boss thread built to SAE J514, and the B2 end is a 3/4-14 Female NPSM swivel thread built to SAE J476. It also uses an NBR O-ring/seal to help make a leak-resistant ORB connection.

Question by: Wes K on Oct 25, 2025, 3:14 PM

Got a 3/4-14 NPSM female port on my equipment, this adapter gonna mate up to that without any fuss?

Answer by: Customer Support on Oct 27, 2025, 6:00 AM

The swivel end on this adapter is a 3/4-14 Female NPSM thread built to SAE J476, so yes, that'll connect right up to a matching 3/4-14 NPSM port. The swivel design gives you a little rotational flexibility during installation, which helps a lot when you're working in tight or awkward spots and can't easily spin the whole line.

Question by: Judy B on Nov 7, 2025, 12:25 PM

Will this here fitting work with a standard hydraulic setup?

Answer by: Customer Support on Nov 8, 2025, 12:40 PM

This adapter is designed with SAE J514 and SAE J476 specifications for the male O-ring boss and female NPSM swivel threads, respectively, ensuring compatibility with standard hydraulic systems using those thread types.
