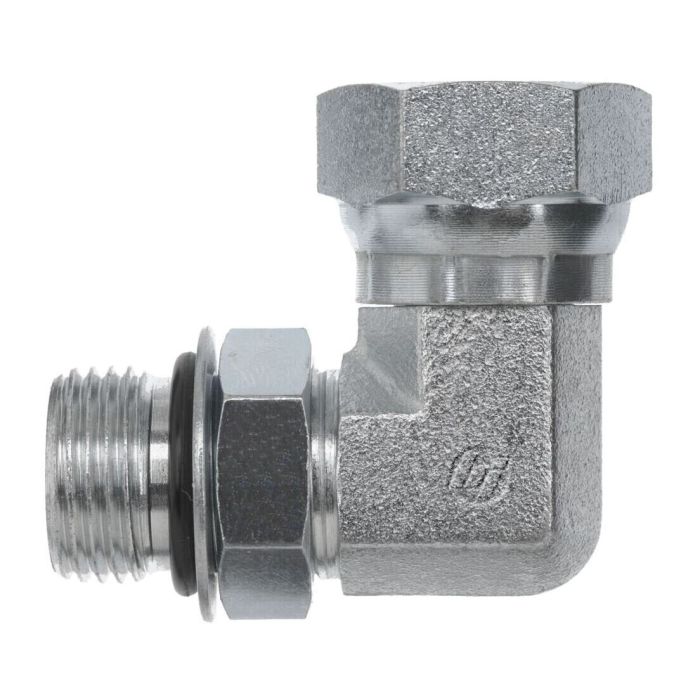

08MAORB-08FPS 90 ELB STAINLESS

Description & Features

Constructed from stainless steel, the 08MAORB-08FPS 90 ELB STAINLESS is a 90-degree elbow fitting designed for hydraulic systems requiring corrosion-resistant connections. The male end features a 3/4-16 SAE adjustable O-ring boss thread conforming to SAE J514, while the female end uses a 1/2-14 NPSM swivel thread per SAE J476. An NBR O-ring seal provides reliable fluid containment at the male connection.

Part of the Brennan Industries 6901-NWO-FG series, this fitting is manufactured from straight stainless steel bar stock. Hex sizes of 7/8" and 1" allow for standard wrench installation. The swivel female end simplifies assembly in tight or angled routing situations by allowing rotation during make-up. Carries a California Proposition 65 warning.

SKU: 6901-08-08-NWO-SS

Supplier Part Number (MPN): 6901-08-08-NWO-SS

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type FNPSM Swivel, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 FNPSM Swivel	Dimension Standards SAE J1926, SAE J514, SAE J476	Dimensions 1.39 in L	Fitting Type 90 deg Elbow	Hex Size 7/8 x 1 in	l2 Dimensions 1.11 in	l Dimensions 1.39 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6901-NWO-FG Series	Thread 2 Drill Dimensions 0.46 in	Thread B1 Drill Dimensions 0.391 in	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Dwayne W on Dec 13, 2025, 2:18 PM

Is this elbow fitting good for systems that might see some corrosion?

Answer by: Customer Support on Dec 15, 2025, 7:56 AM

Yes, this elbow is constructed from stainless steel, which makes it suitable for hydraulic systems where corrosion resistance is important.
