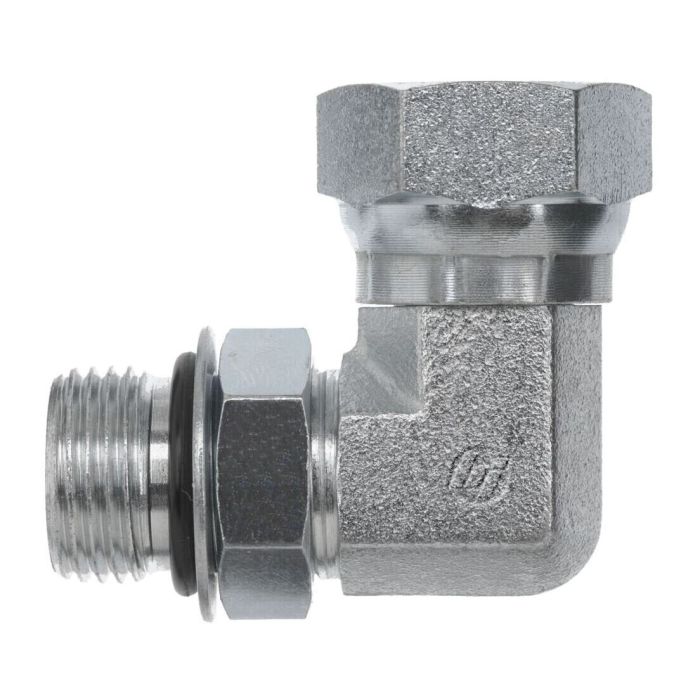

#10 MORB X #4 FP SWIVEL 90*

Forged from steel, the #10 MORB x #4 FP Swivel 90° is a 90-degree elbow fitting designed for hydraulic line connections requiring a directional change with a serviceable, adjustable port. The male end features a #10 SAE Adjustable O-Ring Boss (MAORB) thread at 7/8-14, conforming to SAE J514, while the female end uses a #4 NPSM Swivel connection at 1/4-18, conforming to SAE J476. The O-ring seal is NBR, suited for use with common hydraulic fluids.

Steel forging construction provides consistent mechanical integrity throughout the fitting. The adjustable O-ring boss port allows for precise clocking during installation without compromising the seal. With a centerline length of 1.700 in. and overall lengths of 1.210 in. and 1.020 in. on each leg, the fitting is compact enough for use in tightly routed hydraulic assemblies. This fitting is part of the Brennan 6901-Nwo-Fg series. California residents should note this product carries a Prop 65 warning.

SKU: 6901-10-04-NWO-FG

Supplier Part Number (MPN): 6901-10-04-NWO-FG

Alternate Part Numbers: 6901-10-04-NWO, C1DZ67
