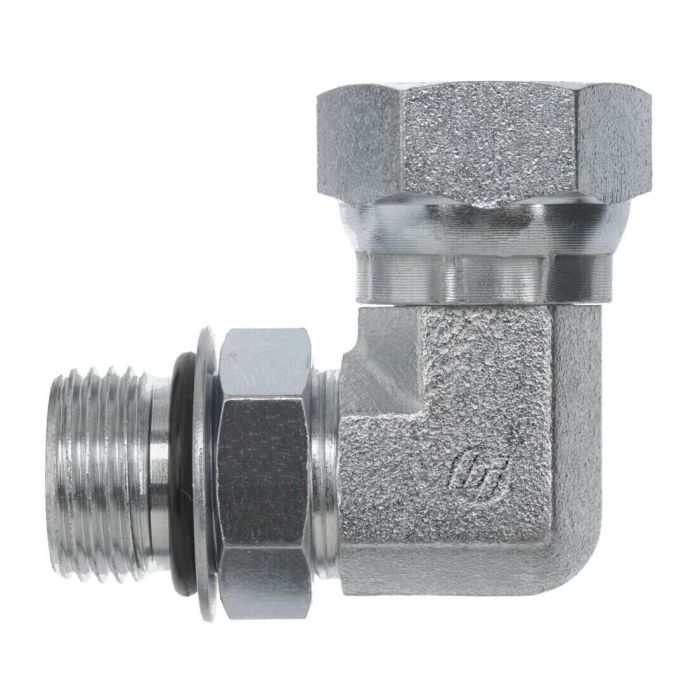

#10 MORB X #6 FP SWIVEL 90*

Description & Features

Forged from steel, the #10 MORB x #6 FP Swivel 90° elbow provides a compact 90-degree directional change in hydraulic lines where routing space is limited. The male end features a #10 SAE adjustable O-ring boss thread (7/8-14, per SAE J514), while the female end is a #6 NPSM swivel connection (3/8-18, per SAE J476), a combination well-suited for connecting lines with differing port and hose end standards. The NBR O-ring seal supports reliable fluid containment under dynamic conditions.

Manufactured by Brennan Industries as part of the 6901-NWO-FG series, this fitting is constructed from a steel forging, which provides consistent material density and dimensional integrity. The swivel feature on the female end simplifies installation by allowing rotation during makeup without twisting the connected line. California residents should note this product carries a Prop 65 warning.

SKU: 6901-10-06-NWO-FG

Supplier Part Number (MPN): 6901-10-06-NWO-FG

Alternate Part Numbers: 2068-6-10S, 6901-10-06, 6901-10-06-NWO, A2068-6-10S, C1DZ68

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6901-10-06-NWO-FG	Product Weight 0.00 lbs

Product Questions & Answers (3)

Question by: Jean H on May 20, 2025, 10:16 AM

Will this fitting hold up ok for hydraulic fluid?

Answer by: Customer Support on May 22, 2025, 8:10 AM

Absolutely, this elbow is designed to handle hydraulic fluid, and it's got an NBR O-ring to keep everything sealed up tight.

Question by: Rick M on Aug 27, 2025, 9:33 AM

fitting's got a swivel on the female end, does that mean I can spin it into place without having to twist my hose line during install?

Answer by: Customer Support on Aug 28, 2025, 2:35 PM

That's what the swivel is there for. The female NPSM end rotates freely so you can thread it onto your hose fitting and work it into position without putting any twist into the line itself. Makes a real difference in tight spots where you don't have a lot of room to maneuver. The male ORB side is the one you're threading into the port, and that end is adjustable, so you can clock the elbow to the angle you need before locking it down.

Question by: Debbie R on Dec 25, 2025, 5:51 PM

got a hose end that’s 3/8-18 NPSM swivel. will this elbow screw onto it and still give me a #10 ORB on the other side?

Answer by: Customer Support on Dec 26, 2025, 9:47 PM

You can use it for that mix. One end is a #6 female NPSM swivel thread at 3/8-18 (SAE J476), and the other end is a #10 male SAE adjustable O-ring boss at 7/8-14 (SAE J514). It is a 90 degree elbow, so it also turns the line while making that thread conversion.
