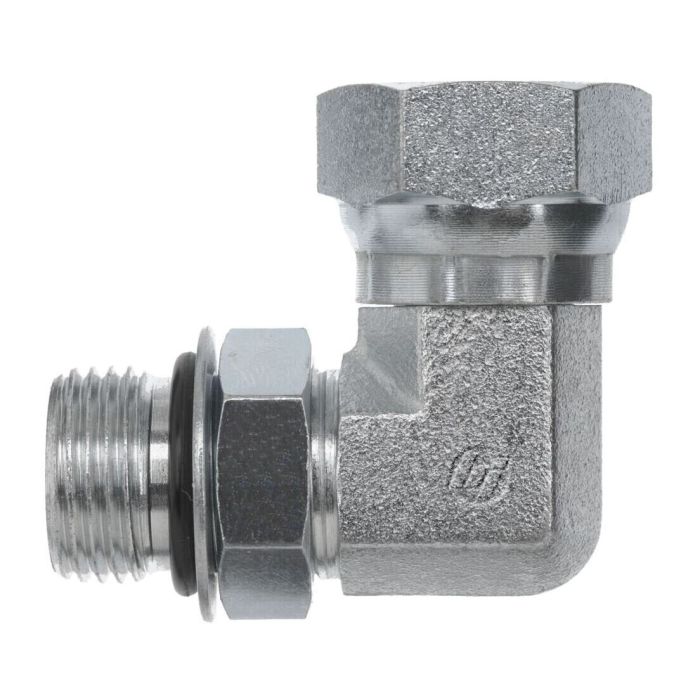

main product photo

10MAORB-08FPS 90 DEG ELBOW FORGED

Ask A Question

Description & Features

This forged steel 90-degree elbow features a male SAE adjustable O-ring boss thread on one end and a female NPSM swivel thread on the other. The 10MAORB-08FPS 90 DEG ELBOW FORGED ensures a secure connection with its NBR O-ring seal material.

The B1 thread is 7/8-14 with SAE J514 specification, while the B2 thread measures 1/2-14 to SAE J476 standards. It is part of the 6901-NWO-FG series.

SKU: 6901-10-08-NWO-FG

Supplier Part Number (MPN): 6901-10-08-NWO-FG

Alternate Part Numbers: 6901-10-08, 6901-10-08-NWO, A2068-8-10S

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPSM Swivel
Dimension Standards
SAE J1926, SAE J514, SAE J476
Dimensions
1.39 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
l2 Dimensions
1.11 in
l Dimensions
1.39 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6901-NWO-FG Series
Thread 2 Drill Dimensions
0.46 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Brenda W on Sep 19, 2025, 5:39 PM
Will this fitting work with standard hydraulic systems or is it something special?
Answer by: Customer Support on Sep 21, 2025, 1:53 PM
It's designed for use in standard hydraulic systems, employing a male SAE adjustable O-ring boss on one end and a female NPSM swivel on the other for a secure connection.
