10MAORB-12FPS 90 DEG ELBOW

Description & Features

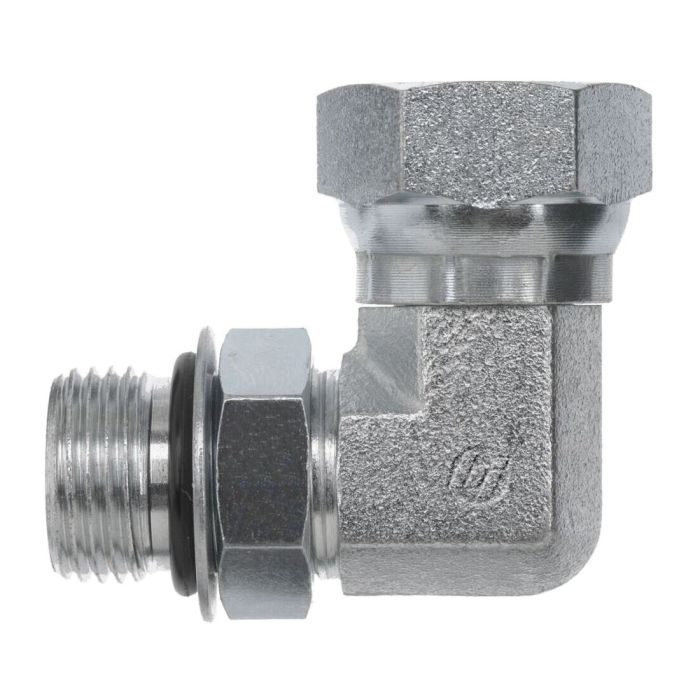

This 10MAORB-12FPS 90-degree elbow from Brennan Industries ensures reliable connections in demanding hydraulic applications. This elbow fitting is designed for secure and leak-free performance.

Featuring robust construction and precise threading, the 10MAORB-12FPS 90 DEG ELBOW offers dependable service in a variety of hydraulic systems.

SKU: 6901-10-12

Supplier Part Number (MPN): 6901-10-12-NWO-FG

Alternate Part Numbers: A2068-12-10S

Specifications

Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type FNPSM Swivel, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 FNPSM Swivel	Dimension Standards SAE J514, SAE 140257	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 1-1/4 x 1 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 2250 psi	Operating Temperature -40 to 250 deg F	Series 6901-NWO-FG Series	Thread Size 3/4-14, 7/8-14

Product Questions & Answers (1)

Question by: Warren S on Nov 21, 2025, 2:47 PM

Is this elbow suitable for replacing a Parker A2068-12-10S fitting?

Answer by: Customer Support on Nov 23, 2025, 6:53 AM

This 10MAORB-12FPS 90-degree elbow from Brennan Industries is an alternate part for A2068-12-10S fittings.
